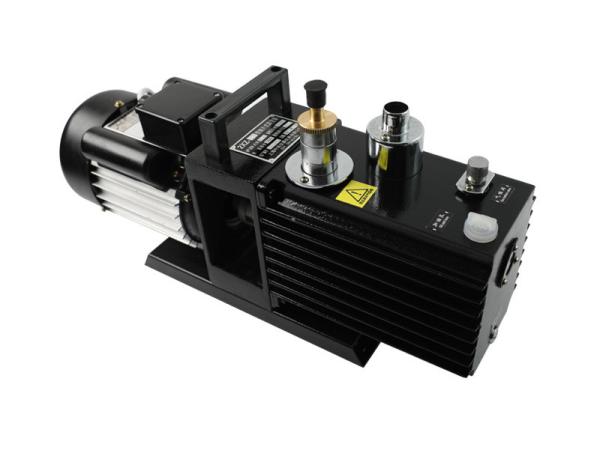

Single Double 2 Stage Rotary Vane Vacuum Pump Oil Free 0.25kw General Laboratory Apparatus
Single Double 2 Stage Rotary Vane Vacuum Pump Oil Free 0.25kw General Laboratory Apparatus
Specifications
Brand Name :
SRL
Model Number :
2XZ
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1set
Price :
USD 300-500
Payment Terms :
D/A, D/P, T/T, Western Union, Online, L/C, Paypal
Supply Ability :
50sets per month
Delivery Time :
3-5 working days
Packaging Details :
Wooden or carton case
Function :
Vacuum extraction
Supply area :
Global
Work power :
220V/380VAC, 50/60HZ
Power :
0.25 0.37 0.55KW
Product range :
Laboratory tool
Type :
Rotary vane
Description

Features

● Small size, light weight and low noise;
● It is equipped with a gas ballast valve , which can remove a small amount of water vapor;
● It is equipped with an automatic anti-return oil double safety device;
● Small-diameter 2XZ-2, 2XZ-4 vacuum pumps are specially equipped for vacuum drying Boxes, freeze dryers, printing machinery;
Equipped with small-diameter adapters and KF interfaces;

Specifications

Model 2XZ-1 2XZ-2 2XZ-4
Pumping rate 50 (Hz) 7.2(2) 14.4(4) 3.6(1)
m 3 /h(L/S) 60(HZ) 8.4 (2.4) 17.2 (4.8) 4.3(1.2)
Ultimate pressure (Pa) partial pressure ≤6x10-2 ≤6x10-2 ≤6x10-2
full pressure ≤1.33 ≤1.33 ≤1.33
50Hz Conversion (r/min) 1400 1400 1400
60Hz Speed (r/min) 1720 1720 1720
Motor power (KW) 0.25 0.37 0.55
Working voltage (V) 220/380 220/380 220/380
Inlet diameter (mm) (outer diameter) Φ20 Φ30 Φ30
Noise (dBA) 65 68 68
Oil capacity (L) 0.7 1 1.2
Dimensions (mm) 469x168x260 514x168x282 565x168x282
Gross weight/Net weight (kg) 18/17 22/20 24/22

Single Double 2 Stage Rotary Vane Vacuum Pump Oil Free 0.25kw General Laboratory Apparatus

Oil free vacuum pump
