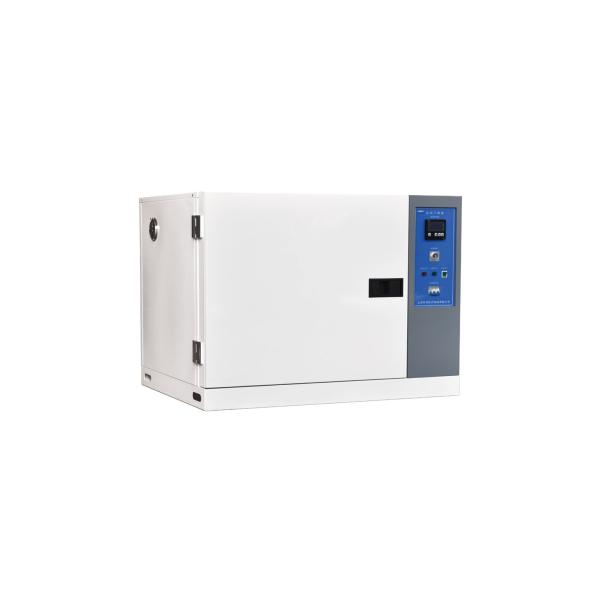

High Precision Lab Drying Oven Electrothermal Fanned Dryer With Heat Insulation Design
High Precision Lab Drying Oven Electrothermal Fanned Dryer With Heat Insulation Design
Specifications
Brand Name :
Hengzi
Model Number :
HJJF
Certification :
CE
Place of Origin :
China
MOQ :
5 units
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 UNITS PER 7 DAYS
Delivery Time :
15-30 DAYS
Packaging Details :
1 pcs/CTN
Name :
Electrothermal Fanned Dryer
Temperature Fluctuation :
±0.5℃
Inner Cyclic Mode :
Horizontal air supply
Power :
1Φ 220V 50Hz
Temperature Range :
RT+10℃-250℃
warranty :
1 year
Description

Electrothermal Fanned Dryer Precision type

Scope of Application:

This equipment is applied to drying, baking, wax melting and disinfection in industrial & mineral enterprises, laboratories and scientific research institutes.

Structure Characteristics:

  • Outer Shell Material: Cold-rolled steel sheet surface spray
  • Inner Material: SUS304 Stainless steel
  • Meet JJF1101-2003 Equipment Temperature and Humidity Standard in Environment Test
  • Heat insulation design
  • Stainless steel axial flow fan blade horizontal air supply, Upper and lower temperature uniformity
  • Side air outlet, adjustable Air volume
  • Stainless steel tube heater
  • High power and large load motor with stability
  • Contactless relay, prevent from Electromagnetic interference and High frequency interference
  • Import P.I.D. temperature controller, LCD colorful display
  • Shelves adjusted easily and flexiblely
  • Independent external even temperature protection device

Model Specifications:

Model HJJF-43 HJJF-71 HJJF-136 HJJF-255
Temperature Range RT+10℃-250℃
Temperature Fluctuation ±0.5℃
Temperature Uniformity ≤Max Working Temperature ±1%
Inner Cyclic Mode Horizontal air supply
Alarm Type Over temperature alarm, Under temperature alarm and Temperature probe damage alarm

Work Room Dimension

WxDxH (cm)

 30*30*30 45*45*45 55*45*55 60*60*60
Capacity(L) 27 91 136 216

Outline Dimension

WxDxH (cm)

 87*59*67 102*74*82 112*74*92 117*89*97
Shelves 2 2 2 2
Rated Power (W) 1500 3000 4500 6000
Power 1Φ 220V 50Hz
