Astm D4945 Standard Pile Testing Equipment High Strain For Loading Capacity
Astm D4945 Standard Pile Testing Equipment High Strain For Loading Capacity
Specifications
Brand Name :
SAMYON
Model Number :
HPT
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Carton
Name :
Pile dynamic analyzer
Software :
PDAR & RCAPWAP
Standard :
ASTM D4945
Strain gauge :
Range 2000
Accelerometer :
PE, imported from America
Sampling points :
1024, 2048 and 4096
Description

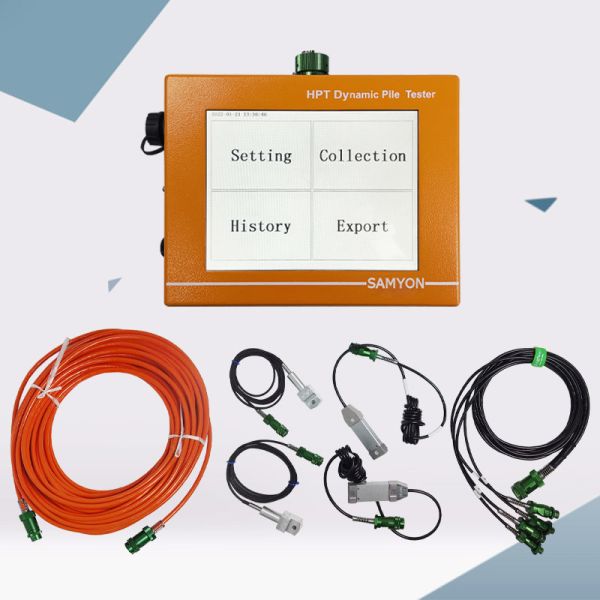

ASTM D4945 Standard HPT High Strain Pile Testing Equipment For Loading Capacity

Pile Testing Equipment' s Description

Accelerometer: Original imported from America. High precision, Stable Performance, durable and reliable. Compatible with American PDA.

Strain Gauge: Range 2000 with large testing range. With side protection. Military aviation connector

Main cable: Custom geophysical exploration field special cable, high and low temperature resistance, wear resistance

One-to-four cable: Custom geophysical exploration field special cable, Military aviation connector

Pile Testing Equipment' s Application & Advantage:

Instrument can be used for testing the bearing capacity and pile integrity of the driven pile and Cast-in-place pile, and also steel pile. Pile Testing Equipment can also be used for piling monitoring, Pile Testing Equipment use imported accelerometer, so the performance is very stable, with its simple operation and powerful software.

Pile Testing Equipment' s Sampling Setting:

The sampling frequency is 10kHz, 20kHz and 40kHz, adjustable.

The sampling length is 1024, 2048, 4096, selectable.

Max sampling time is up to 400ms.

Pile Testing Equipment' s Standard: ASTM D4945 Standard Test Method for High-Strain Dynamic Testing of Deep Foundations

Data Format

The original data is .S01, can save as .S06 by PDAR software, and save as .S16 by RCAPWAP software.

It can also save as .X01 compatible with American PDA.
Data Management

The data can be continuously and automatically saved.

It can export by U disk through USB.

It can save up to 10k measured curve.
Sensor features

The sensor has self-checking function, it can judge whether the system is on normal status automatically.

It can auto check the static strain deviation of strain gauge, then do auto calibration before testing
Analysis software

PDAR analysis software is for opening the original data .S01, and do adjusting as CASE method.

RCAPWAP analysis software is for opening the .S06 data, and do matching as Matching method.

Pictures

Astm D4945 Standard Pile Testing Equipment High Strain For Loading Capacity

Astm D4945 Standard Pile Testing Equipment High Strain For Loading Capacity
Astm D4945 Standard Pile Testing Equipment High Strain For Loading CapacityAstm D4945 Standard Pile Testing Equipment High Strain For Loading CapacityAstm D4945 Standard Pile Testing Equipment High Strain For Loading CapacityAstm D4945 Standard Pile Testing Equipment High Strain For Loading CapacityAstm D4945 Standard Pile Testing Equipment High Strain For Loading Capacity
Astm D4945 Standard Pile Testing Equipment High Strain For Loading Capacity
