Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor
Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor
Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor
Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor
Specifications
Brand Name :
SAMYON
Model Number :
SY-8360
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
999/mth
Delivery Time :
3-5days
Packaging Details :
Carton
Name :
Bored pile hole tester
Standard :
DGJ32/J 21
Test method :
Ultrasonic testing method
Test range :
300 to 11000mm (hole diameter)
Test depth :
100m or 150m
Mud ratio :
=<1.4g/cm3
Description

Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor

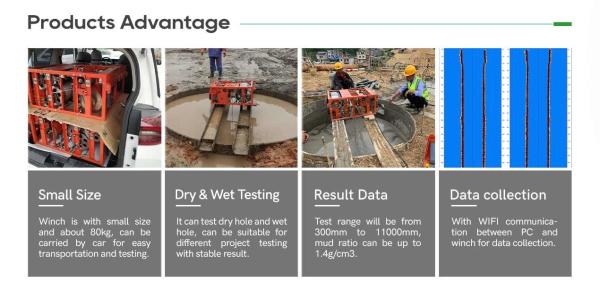

Advantage:

Small Size

Winch is with small size and about 80kg, can be carried by car for easy transportation and testing.

Dry & Wet Testing

It can test dry hole and wet hole, can be suitable for different project testing with stable result.

Powerful Probe

Test range will be from 300mm to 11000mm, mud ratio can be up to 1.4g/cm3.

Data collection

With WIFI communication between PC and winch for data collection.

Item Name Details
1 Test method Ultrasonic testing method
2 Direction Four directions (X, X’, Y, Y’)
3 Test range 300 to 11000mm (hole diameter)
4 Test depth 100m or 150m
5 Mud ratio =<1.4g/cm3
6 Winch weight 80kg
7 Software With 3D image (optional)
8 Lift and down speed 0-20m/min, adjustable
9 Ultrasonic frequency 83kHz
10 Transmit voltage 1000V
11 Scan speed >=20times per second
12 Power supply 220VAC or Li battery
13 Depth resolution =< 5mm, error=<0.1%
14 Frequency bandwidth 1-500k
15 Sonic precision =<0.5%
16 Test precision(horizontal) +/-0.2% FS
17 Probe dimension 104*104*300mm
18 Probe weight 14kg
19 Auto stop function Touch wall or hole downside will automatically stop
20 Probe structure With two sides wire line to hold the weight, and the signal cable support it
21 Winch dimension 800*500*390mm

Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor

Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole MonitorBored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor

Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor

Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor
