640*480 Resolution NDT Ultrasonic Testing Equipment Nonmetal Crack Depth Tester
640*480 Resolution NDT Ultrasonic Testing Equipment Nonmetal Crack Depth Tester
640*480 Resolution NDT Ultrasonic Testing Equipment Nonmetal Crack Depth Tester
640*480 Resolution NDT Ultrasonic Testing Equipment Nonmetal Crack Depth Tester
640*480 Resolution NDT Ultrasonic Testing Equipment Nonmetal Crack Depth Tester
640*480 Resolution NDT Ultrasonic Testing Equipment Nonmetal Crack Depth Tester
Specifications
Brand Name :
SAMYON
Model Number :
SY-F51
Certification :
ISO
Place of Origin :
CN
MOQ :
1 set
Price :
can be negotiated
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999/mth
Delivery Time :
3-5days
Packaging Details :
carton
Name :
Nonmetal crack depth tester
Standard :
CECS 21:2000
Crack depth test range :
=< 650mm
Crack depth accuracy :
=< 10%
Data storage capacity :
store more than 6000 data
Screen :
640*480 resolution
Description

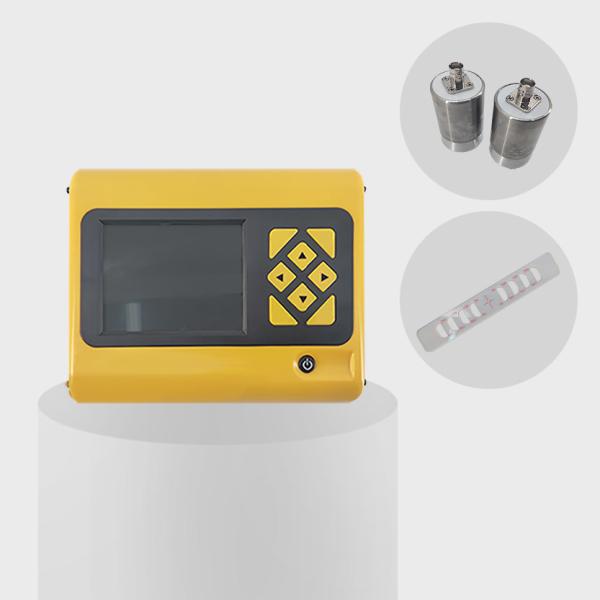

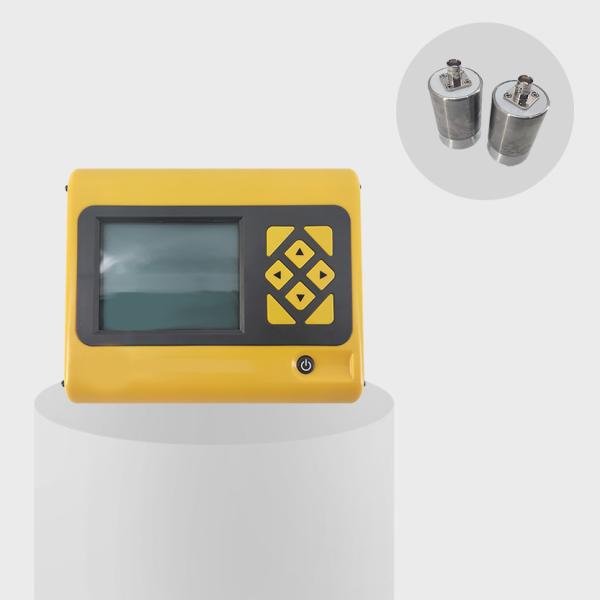

SY-F51 Crack Depth Tester For Testing Concrete Crack Depth By Ultrasonic Method

SY-F51 Crack depth tester

Application: used to test crack depth and sound wave velocity in concrete according to sound wave diffraction propagation principle. It is an intelligent instrument with combined functions such as testing, saving and transiting data.

Standard:

CECS 21:2000 Technical specification for inspection of concrete defects by ultrasonic method

Parameters:

Item Name Details
1 Crack depth test range =< 650mm
2 Crack depth accuracy =< 10%
3 Data storage capacity can store more than 6000 cracks measured point data and image
4 Screen 640*480 resolution
5 Power 6pcs No. 5 battery
6 Operating temperature -10°C ~ +50°C
7 Main host dimension 208mmX168mmX85mm

Features:

1. Large-screen display: 5 "color LCD display with a resolution of 640 * 480;

2. Can test larger crack depth, it can be up to 650mm

3. The tester is equipped with a dedicated scale, portable and practical, can improve the test efficiency.

4. Easy data transfer: the instrument can be directly connected to the computer, no need U disk.

5. Powerful professional windows data analysis processing software: data can be imported into Word and Excel, convenient and user-friendly post-processing of data.
