Specifications
Brand Name :
SAMYON
Model Number :
SY-R61
Certification :
ISO
Place of Origin :
CN
MOQ :
1 set
Price :
can be negotiated
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999/mth
Delivery Time :
3-5days
Packaging Details :
carton
Name :
Steel bar corrosion tester
Standard :
GB/T 50344 -2004
Test range :
+/- 2000mV
Method :
potentiometry and gradient method
Test point space :
1 ~99cm
Description

SY-R61 Rebar Corrosion Tester For Testing The Rebar Corrosion By Electrochemical Method

SY-R61 Rebar corrosion tester

Application: used to test the degree of steel-bar corrosion by electrochemical method. It can check the concrete rebar corrosion status, then estimate the effect to the building structure. So the project can find one better solution to avoid this problem.

Standard:

GB 50204-2015 Code for quality acceptance of concrete structure construction

GB/T 50344 -2004 Technical standard for inspection of building structure

Parameters:

Item Name Details
1 Test range +/- 2000mV
2 Accuracy +/- 1mV
3 Test point space 1 ~99cm
4 Power 6pcs No.5battery
5 Operating temperature -4°C ~ +40°C
6 Humidity < 90%RH
7 Environment No Strong electromagnetic field

Features:

1. Two test modes: The potentiometry and gradient method is used to test steel-bar corrosion which suitable for different working field.

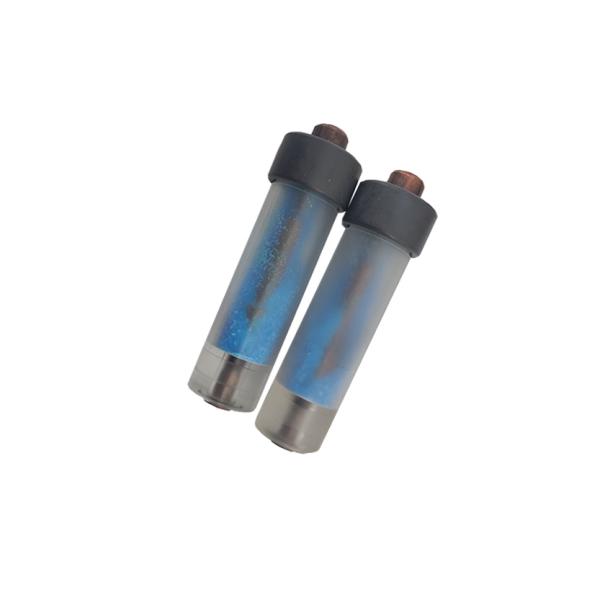

2. Permanent reference electrode: Saturated CuSO4 solution is sealed up completely in reference electrode. Field test keeps clean, simple and pollution-free operations.

3. Automatic measure environmental temperature. Instrument is with a environmental temperature module, it can measure, record and display temperature quickly, no need thermometers.

4. Can save test date. Convenient for data management.

5. Display test result intuitively by icon mode, The icon color is more dark, the steel-bar corrosion is more serious. User can observe the corrosion degree intuitively.

6. USB transmission. Data can be transmitted to computer for future process and analysis.

7. Powerful data process and analysis software, test data can be exported to word or excel for future process and analysis.
