SY-H51 NDT Testing Equipment 640*480 40mm-800mm Nonmetal Plate Thickness Tester
SY-H51 NDT Testing Equipment 640*480 40mm-800mm Nonmetal Plate Thickness Tester
SY-H51 NDT Testing Equipment 640*480 40mm-800mm Nonmetal Plate Thickness Tester
SY-H51 NDT Testing Equipment 640*480 40mm-800mm Nonmetal Plate Thickness Tester
SY-H51 NDT Testing Equipment 640*480 40mm-800mm Nonmetal Plate Thickness Tester
SY-H51 NDT Testing Equipment 640*480 40mm-800mm Nonmetal Plate Thickness Tester
Specifications
Brand Name :
SAMYON
Model Number :
SY-H51
Certification :
ISO
Place of Origin :
CN
MOQ :
1 set
Price :
can be negotiated
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
999/mth
Delivery Time :
3-5days
Packaging Details :
carton
Name :
Floor thickness tester
Standard :
GB 50204-2015
Thickness test range :
40mm ~ 800mm
Thickness accuracy :
+/-1mm(40~600mm)
Data storage capacity :
store more than 32,000 data
Screen :
640*480 resolution
Description

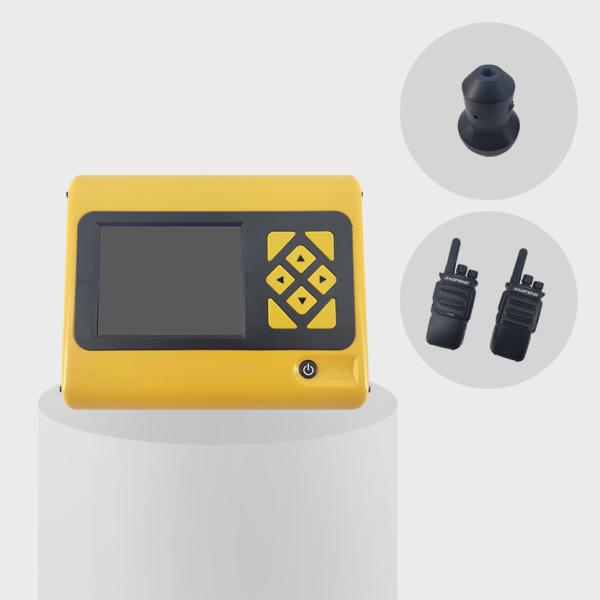

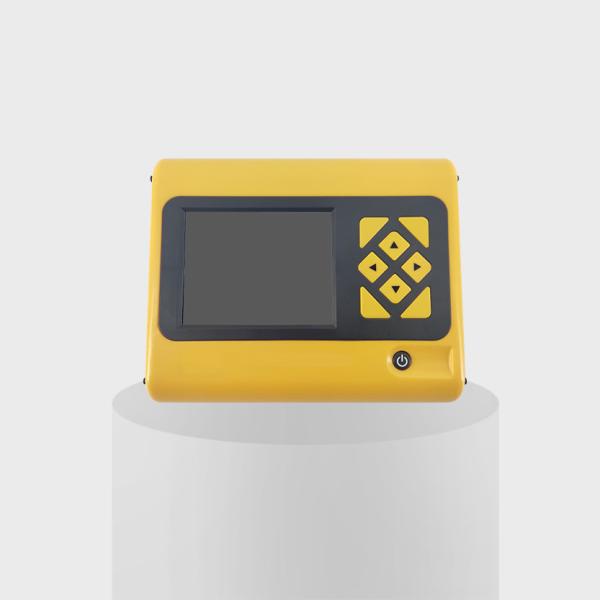

SY-H51 Nonmetal Plate Thickness Tester (Building Floorslab Thickness Tester) For Nonmetallic Board Thickness Testing

SY-H51 nonmetal plate thickness tester (Building floorslab thickness tester)

Application: used for nonmetallic board thickness testing, such as concrete, rock, glass etc, The functions include thickness testing, data analysis, saving and transmission.

Standard:

GB 50204-2015 Code for quality acceptance of concrete structure construction

Parameters:

Item Name Details
1 Thickness test range 40mm ~ 800mm
2 Thickness accuracy

+/-1mm(40~600mm)

+/-2mm(601~800mm)
3 Data storage capacity can store more than 32,000 measured point data
4 Screen 640*480 resolution
5 Power 6pcs No. 5 battery
6 Operating temperature -10°C ~ +50°C
7 Main host dimension 208mmX168mmX85mm

Features:

1. The probe adopts one-time plastic casting processing method, strong and durable

2. The good quality of the imported signal cable, flexible and substance.

3. The test space is larger, can be up to 800mm

4. The test is fast and efficient. Test 3~5 point thickness only takes within 3 minutes.

5. Long service life of sensor with high quality abrasion resistance layer

6. The special clasp between extend bar and transmitting sensor can prevent its falling.

7. Can save test date. This function is convenient for data management.

8. Powerful data process and analysis software in Windows.
