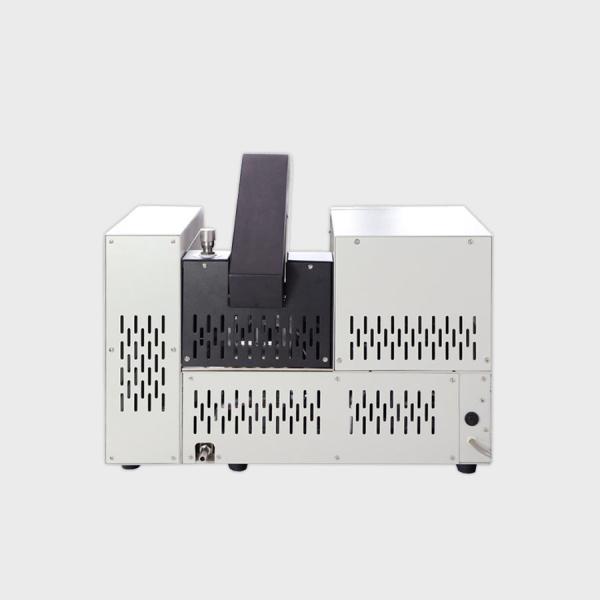

Fully Automatic Cleveland Open Cup Flash Point Tester 700W With Touch Screen
Fully Automatic Cleveland Open Cup Flash Point Tester 700W With Touch Screen
Fully Automatic Cleveland Open Cup Flash Point Tester 700W With Touch Screen
Fully Automatic Cleveland Open Cup Flash Point Tester 700W With Touch Screen
Specifications
Brand Name :
SAMYON
Model Number :
SY-3536D
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Carton
Name :
Cleveland Flash Point Tester
Standard :
ASTM D92
Temp range :
Ambient ~ 400℃
Ignition mode :
Electric
Method :
Cleveland open cup method
Data transmission :
Bluetooth
Description

SY-3536D Fully-Automatic Touch Screen Cleveland Open-Cup Flash Point Tester

Application:

It is used to detect Flash and Fire Points by Cleveland open cup method. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.

Standard:

ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester

GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland open cup method

Parameters:

Item Name Details
1 Temperature measurement range room temperature ~ 400℃
2 Ignition mode electric, igniter diameter 0.7mm ~ 0.8mm
3 Heating rate Initial heating: (14~17)℃/min, it is (5-6)℃/ min after reaching the preset flash point 20℃
4 Maximum power consumption 700W
5 Accuracy 0.1℃
6 Fire extinguishing device when the fire point appears, it can automatically extinguish the fire and return to its original position; it can also manually press the key to extinguish the fire
7 Data transmission mode Bluetooth
8 Ambient temperature (15~35)℃
9 Relative humidity =<85%
10 Power supply AC220 +/-5% V, 50Hz
11 Dimension 510mmx320mmx330mm

Features:

1. Automatic measurement of atmospheric pressure, automatic correction of flash point value.

2. Equipped with Bluetooth interface.The user can query test data anytime.

3. It adopts an 8-inch IPS high-definition capacitive screen. Using 32-bit ARM processor and high-precision AD chip, the test data and parameters are recorded in real time and displayed by curve.

4. Electronic ignition, gas flame.

5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.
