Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Pensky Martens Closed Cup Flash Point Tester SY-261-1 ASTM D93 Standard
Specifications
Brand Name :
SAMYON
Model Number :
SY-261-1
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Carton
Name :
Pensky Martens Flash Point Tester
Standard :
ASTM D93
Igniting device :
Igniting source: gas
Heating device :
Furnace
Stirring device :
Stepping motor
Method :
Pensky-Martens closed cup method
Description

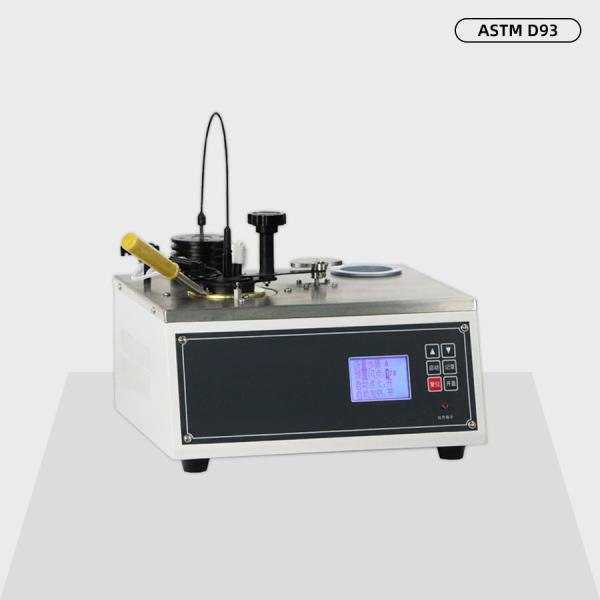

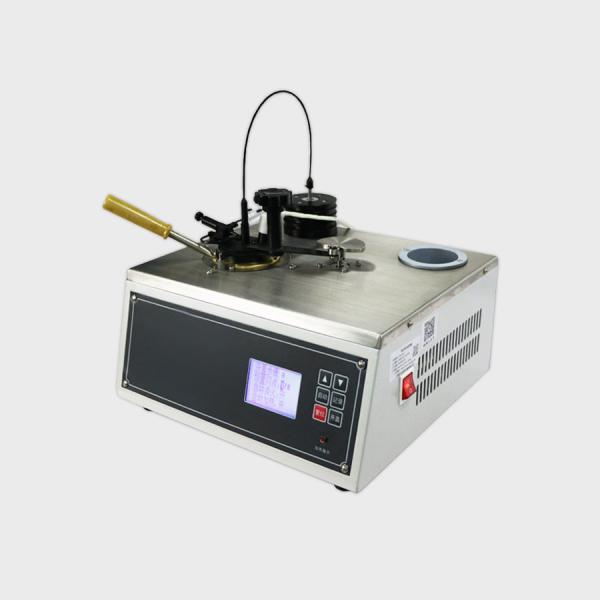

SY-261-1 Pensky-Martens Closed Cup Flash Point Tester

Application:

It is used to make determination of the closed cup flash point of the petroleum products by Pensky-Martens closed cup method.

Standard:

ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.

GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and

Parameters:

Item Name Details
1 Igniting device Igniting source: gas(or other civilian fuels,the same below)
2 Heating device The furnace is silicon carbide material. Power is 600W
3 Heating rate Procedure A: (5～6)℃/min, Procedure B:(1～1.5)℃/min
4 Maximum power consumption =<650W
5 Stirring device Stirring motor: BYGH101 stepping motor
6 Driving mode flexible shaft, 8mm×40mm
7 Stand oil cup

Internal diameter:50.7mm～50.8mm

Depth: 55.7mm～56.0mm
8 Ambient temperature (15~35)℃
9 Relative humidity =<85%
10 Power supply AC 220+/-10% V, 50Hz
11 Dimension 340mmx330mmx380mm

Features:

1. The structure is newly design and small. Stainless steel table-board looks clean and beautiful. It can be used as long as equipped with gas or other civilian fuels. It is easy to use and test results exact.

2. Single chip microcomputer control technique LCD screen displays. English man-machine interaction interface. The heating power is continuously step-less adjustable. The rate of heating up is exact. Easy setting for parameters.

3. The LCD screen has prompting menu, prompting input operation interface. It shows the set parameters, real-time temperatures and other test parameters. Press the “record” button when the flash point appears. The screen will show and reserve the flash point.
