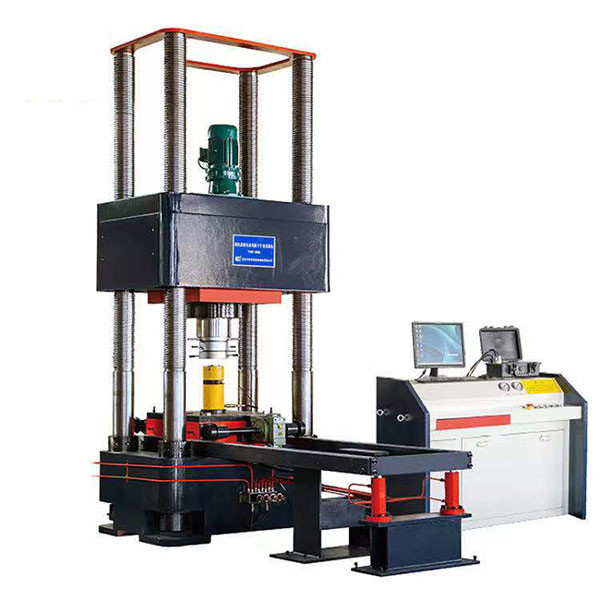

YAW Jack Testing Machine 200mm/min For Calibrating Hydraulic Jacks
YAW Jack Testing Machine 200mm/min For Calibrating Hydraulic Jacks
YAW Jack Testing Machine 200mm/min For Calibrating Hydraulic Jacks
YAW Jack Testing Machine 200mm/min For Calibrating Hydraulic Jacks
Specifications
Brand Name :
SAMYON
Model Number :
YAW
Certification :
ISO
Place of Origin :
CN
MOQ :
1 set
Price :
can be negotiated
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100sets per week
Delivery Time :
8-10days
Packaging Details :
Wooden case
Name :
Jack Testing Machine
Standard :
JJG 621 -2012
Max test force :
3MN -30MN
Max test space :
1600mm -2200mm
Max lifting force :
20KN – 100KN
Beam lifting speed :
200mm/min
Description

YAW Large Range Pressure Testing Machine/Jack Testing Machine

Application:

It is used to test the mechanical properties of jacks, such as force value error, load efficiency, internal leakage, interpolation error, calibration equation, etc.

Standard:

JJG 621 -2012 Hydraulic jacks

Parameters:

Max test force 3MN -30MN (can be customized)
Max lifting force of guide rail 20KN – 100KN
Test adjustment space 0-2200mm(customizable)
Max test space 1600mm -2200mm (customizable)
Thickness of upper and lower platen 150mm, 200mm, 300mm
Hardness of upper and lower platens HRC50-55
Beam lifting speed 200mm/min
The steering control function of port A and B facilitates the release of hydraulic lock
