YAW 300KN Universal Testing Machines 0.3 - 10 KN/S Compression Test Equipment
YAW 300KN Universal Testing Machines 0.3 - 10 KN/S Compression Test Equipment
YAW 300KN Universal Testing Machines 0.3 - 10 KN/S Compression Test Equipment
YAW 300KN Universal Testing Machines 0.3 - 10 KN/S Compression Test Equipment
Specifications
Brand Name :
SAMYON
Model Number :
YAW
Certification :
ISO
Place of Origin :
CN
MOQ :
1 set
Price :
can be negotiated
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Wooden case
Name :
Compression test machine
Max test force :
300KN
Measure range :
2% ~ 100%FS
Loading speed :
0.3 - 10 KN/s
loading Accuracy :
+/- 5%
Flow rate :
1.52
Description

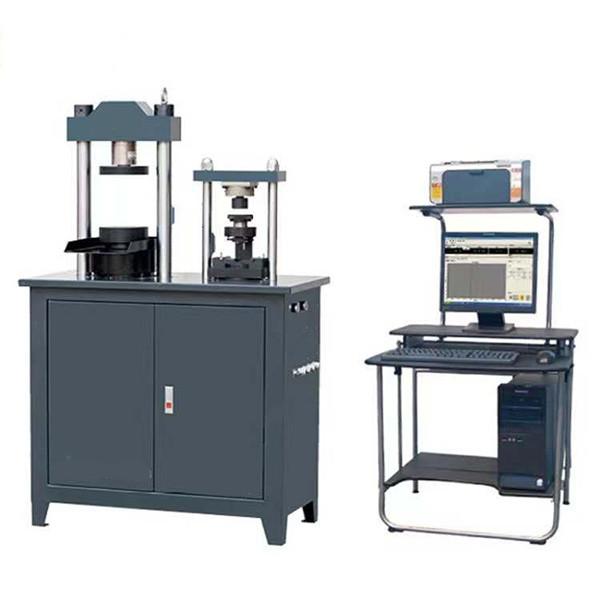

YAW Computer-Control Automatic Compression Testing Machine

Application:

The model YAW-300B can be used in the compression strength testing of cement mortar, while the model YAW-300C can be used in the compression and bending strength testing of cement mortar. Control method of testing rate is electro-hydraulic closed-loop control.

Parameters:

Model YAW-300B YAW-300C
Max test force 300KN

300KN(compression)

/ 10KN(bending)
Measure range 2% ~ 100%FS
Display value relative error =<+/-1% / =<+/-0.5%
Loading speed 0.3 - 10 KN/s

0.3 - 10 KN/s (compression)

/ 50N/s (bending)
Accuracy of loading speed +/- 5%
Upper and lower pressure plate space(mm) 260
Pressure plate dimension(mm) φ155 φ155(compression)/80*150(bending)
Piston diameter(mm) φ 130 φ130(compression)/ φ50(bending)
Max hydraulic pressure(MPa) 25 25
Rated flow rate of oil pump(L/min) 1.52 1.52
Max piston stroke(mm) 80
Motor power(KW) 0.75
Load frame size(mm) 820*450*1300
Total weight(kg) 500

Features:

1. Driven by servo motor, this product avoids leak and blocking of servo valve contracting to the traditional hydraulic type.

2. Zero noise

3. Testing the force by load sensor, the measure range can be as 2% to 100% of the full measure scale, with high accuracy.

4. Equipped with well-found position limitation protection, overload protection, emergency shut-down and other safety protection function.
