0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
Specifications
Brand Name :
SAMYON
Model Number :
HT-20
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
1000sets per week
Delivery Time :
3-5days
Packaging Details :
Carton
Certification :
ISO
Name :
Mortar rebound hammer
Impact energy :
0.196J
Test range :
1.0~25Mpa
Rebound value :
74+/-2
Pointer slider friction :
0.4N~0.6N
Size :
φ54*268mm
Description

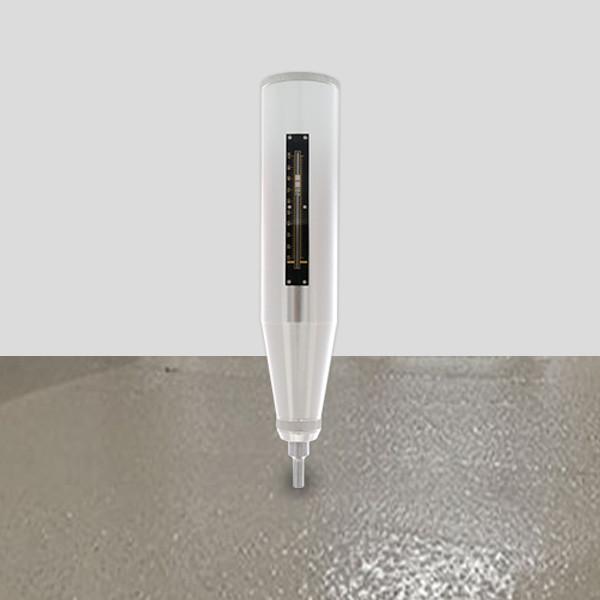

HT-20 Mortar Test Hammer To Test The Compressive Strength Of Mortar In Building Brick Component.

HT-20 Mortar Test Hammer

Application:

It is specially used to test the compressive strength of mortar in building brick component.

Parameters:

Item Names Details
1 Standard impact energy 0.196J(0.02Kgf.m)
2 Test range 1.0~25Mpa
3 Stroke of rebound hammer 75mm
4 Average rebound value on steel anvil Rm 74+/-2
5 Sphere radius of rebound pole SR 25mm
6 Friction of pointer slider 0.4N~0.6N
7 Size φ54*268mm
8 Weight About 1kg

Features:

1. Pointer slider is outside ring structure, easy to adjust friction, and assure the equal friction between pointer slider and axis, so that assure the accuracy of instrument.

2. Shell is made from super hard aluminum, perfectly protect instrument from damage on site work, and prolong use life.

3. Center rod use imported materials, high precision, wear proof.

0.4N~0.6N Concrete Testing Equipments 1kg HT-20 Mortar Test Hammer
