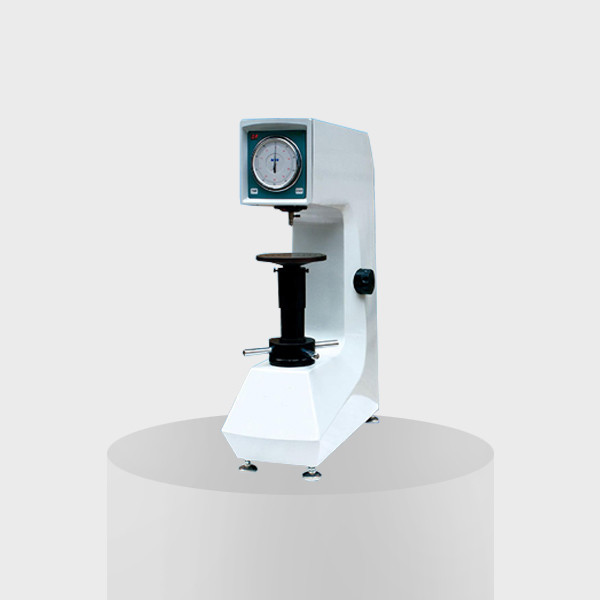

Rockwell Hardness Test Equipment 200HRD-150 ASTM E18-2020 Standard
Rockwell Hardness Test Equipment 200HRD-150 ASTM E18-2020 Standard
Specifications
Brand Name :
SAMYON
Model Number :
200HRD-150
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Wooden case
Name :
Rockwell Hardness tester
Standard :
ASTM E18-2020
Test force :
60,100,150kgf
Measuring range :
20-88HRA/100HRB/70HRC
Depth of throat :
165mm
Max sample height :
210mm
Description

Model 200HRD-150 Motor-Driven Rockwell Hardness Tester For Rockwell Hardness Testing For Quenching Materials

Model 200hrd-150 Motor-Driven Rockwell Hardness Tester

Application:

It is used to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc. The testing precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18. It is motor-driven design type, so it will be much more easy for the testing specimen installation. With the large testing space, it can be suitable for different height of samples.

Standard:

ISO 6508-2: 2015 Metallic materials – Rockwell hardness test – Part 2: Verification and calibration of testing machines and indenters

ASTM E18-2020 Standard Test Methods for Rockwell Hardness of Metallic Materials

GB/T 230.2-2012 Metallic materials –Rockwell hardness test – Part 2: verification and calibration of testing machines(scales A,B,C,D,E,F,G,H,K,N,T)

Parameters:

Item Name Details
1 Test force 588.4, 980.7, 1471N (60,100,150kgf)
2 Measuring range 20-88HRA, 20-100HRB, 20-70HRC
3 Depth of throat 165mm
4 Max. height of test piece 210mm
5 Unit of display 0.5HR
6 Dimension 522 x 220 x 729mm
7 Power 220V AC or 110V AC, 50 or 60Hz
8 Weight approx. 68kg

Features:

1. Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

2. It's steady and reliable for testing of curved surface

3. Optimized mechanical frame, automatic testing process

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc.

1/16" steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.
