Digital Brinell Hardness Test Equipment 210HBS-3000 8 - 650HBW
Digital Brinell Hardness Test Equipment 210HBS-3000 8 - 650HBW
Specifications
Brand Name :
SAMYON
Model Number :
210HBS-3000
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Wooden case
Name :
Brinell Hardness tester
Standard :
ISO 6506-2:2017
Test force :
1838.8, 2451.8
Measuring range :
8-650HBW
Depth of throat :
150mm
Max sample height :
280mm
Description

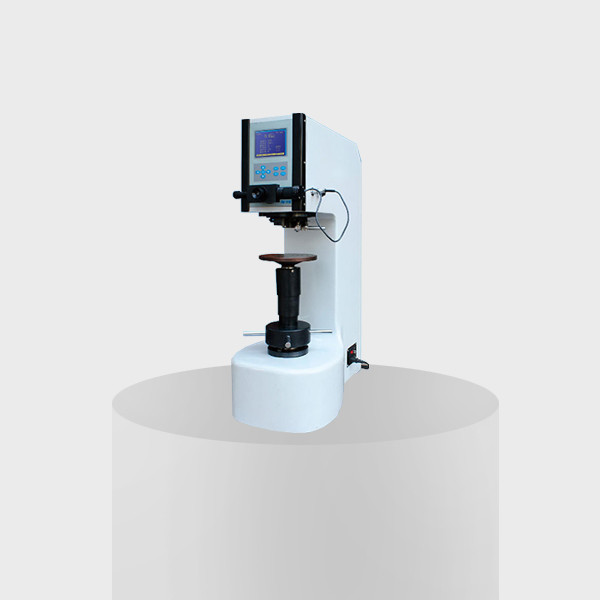

Model 210HBS-3000 Digital Display Brinell Hardness Tester For Testing Brinell Hardness Of Unquenched Steel

Model 210hbs-3000 Digital Display Brinell Hardness Tester

Application:

It is mainly used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Standard:

ISO 6506-2:2017 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

ASTM E10-2018 Standard Test Methods for Brinell Hardness of Metallic Materials

GB/T 231.2-2012 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

Parameters:

Item Name Details
1 Test force

1838.8, 2451.8, 4903.5, 7355.3, 9807, 29421N

(187.5, 250, 500, 750, 1000, 3000kgf)
2 Measuring range 8-650HBW
3 Depth of throat 150mm
4 Max. height of test piece 280mm
5 Min. Measuring unit 1μm
6 Optical magnification 20X, 40X
7 Dimension 570 x 330 x 910mm
8 Weight approx. 220kg
9 Power 220V AC or 110V AC, 50 or 60Hz

Features:

1. Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

2. Hardness conversion between different hardness scales

3. Automatic test process, no human operating error

4. Large LCD display of testing process, easy operation

5. Digital display of Hardness value

6. Manual turret, weight loading system

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each

Brinell standardized block: 2 pcs.
