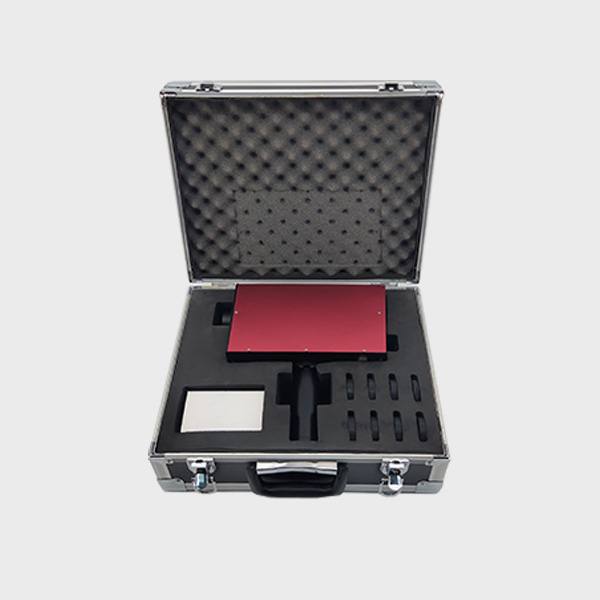

Retro Reflectometer , Traffic Sign Reflectometer ASTM D4061 Standard
Retro Reflectometer , Traffic Sign Reflectometer ASTM D4061 Standard
Retro Reflectometer , Traffic Sign Reflectometer ASTM D4061 Standard
Retro Reflectometer , Traffic Sign Reflectometer ASTM D4061 Standard
Specifications
Brand Name :
SAMYON
Model Number :
SY-101C
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Carton
Name :
Road Sign Reflectometer
Standard :
ASTM D4061
Observation angle α :
0.2 degree
Illumination angle β :
-4 degree
Measuring range（R’） :
0~3000 mcd·lx-1·m-2
Detector :
silicone diode + V（λ）
Description

SY-101C Road Sign Material Retro Reflectometer

Application:

It is used for the Road sign Reflection testing work. It can either be used in situ for traffic safety management, and also can be used for checking on truck and other motors’ sign, it can also be used for the factory retro material monitoring.

Standard:

ASTM D4061-13 Standard test method for Retroreflectance of horizontal coatings

DIN 67520-2013 Retro-reflecting materials for traffic safety - Photometric minimum requirements for retro-reflective sheetings

DIN 67521 Photometric evaluation of lighting of traffic signs: signs for street traffic

GB/T 26377 -2010 Retroreflectometer

GB/T 18833-2002 Retro-reflective sheeting for road traffic signs

GB/T 16311-2009 Specification and test method for road traffic markings

JJG 059-2004 Retroreflectometer

Parameter:

Item Name Details
1 Observation angle α 0.2 degree
2 Illumination angle β -4 degree
3 Light source Warm white LED
4 Detector

silicone diode + V(λ)

(corrector and after correct by light filter that apply with CIE standard)
5 Measuring range(R’) 0~3000 mcd·lx-1·m-2
6 Calibration color quantity 12 colors
7 Battery working time About 72hours
8 Data storage More than 10000pcs
9 Display screen 4.5inch 854*480
10 PC communication method TF card
11 Charging method 220 VAC 50HZ, DC4.2V
12 Battery 5000mah

Features:

1. The instrument is composed of optical system, detection amplification system, power supply and control system, display system and instrument calibration block.

2. It can be used for traffic safety management and on-site inspection of retro-reflective signs for highway, railway, aviation and other relevant.

3. It can measure the reflective performance of the reflective mark on the body of trucks;

4. It can be also used for the reflective materials’ quality monitoring by the retroreflective material manufacturers.

Retro Reflectometer , Traffic Sign Reflectometer ASTM D4061 Standard
