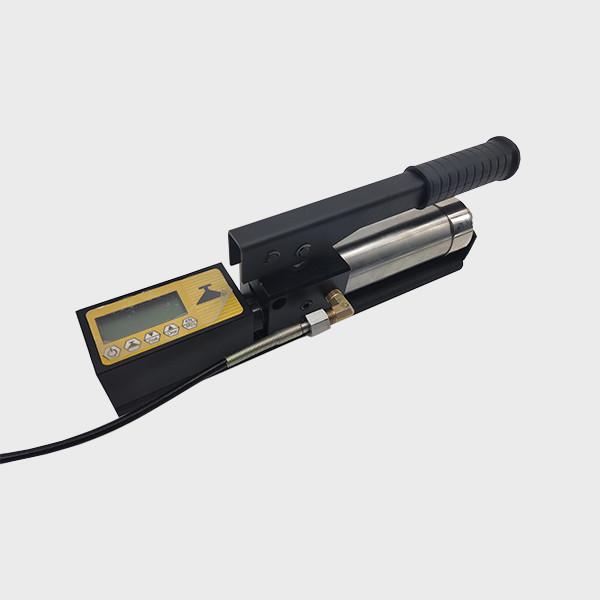

Mini Anchorage Force Test Equipment 50MPa GB 50367-2013 Standard
Mini Anchorage Force Test Equipment 50MPa GB 50367-2013 Standard
Mini Anchorage Force Test Equipment 50MPa GB 50367-2013 Standard
Mini Anchorage Force Test Equipment 50MPa GB 50367-2013 Standard
Specifications
Brand Name :
SAMYON
Model Number :
SY-V
Certification :
ISO
Place of Origin :
CN
MOQ :
1
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Carton
Name :
Mini force tester
Standard :
GB 50367-2013
Max Pressure :
50MPa
Max force :
50KN
Test range :
0-50KN
Power supply :
4.2v Li battery
Description

SY-V Mini Anchorage Force Tester For Testing M6 To M12 Bolt Anchoring Force

SY-V Mini Anchorage Force Tester

Application:
It is suitable for testing the anchorage force of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall.

Standard:
GB 50367-2013 Code for design of strengthening concrete structure
GB 50550-2010 Code for acceptance of construction quality of strengthening building structures
CECS 22:2005 Technical specification for ground anchors
JGJ 145-2013 Technical specification for post-installed fastenings in concrete structures

Parameter:

Model SY-V1.5SY-V2SY-V3SY-V4SY-V5
Manual pumpMax Pressure50MPa
Piston diameter10mm
Weight2kg
Oil cylinderMax force15KN20KN30KN40KN50KN
Piston stroke:50mm
Weight:1.8kg
Central hole:18mm
Digital pressure gaugeTest range0-15KN0-20KN0-30KN0-40KN0-50KN
Power supply4.2v Li battery
Weight0.2kg

Anchorage specifications

(Optional)

φ6, φ8, φ10, φ12,

Connector specifications

(Optional)

M6, M8, M10, M12,


Features:
1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.
2. The manual pump is of High-Low pressure dual-Radial Piston design more efficient.
3. The stainless steel and aluminum material can increase its life.
4. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors. Digital pressure gauge directly shows the tension value.
5. It is featured by compact designation, portable, smaller size, and light weight.

Mini Anchorage Force Test Equipment 50MPa GB 50367-2013 Standard
