55MPa Force Test Equipment 5kg 6-40mm Anchorage Force Tester
55MPa Force Test Equipment 5kg 6-40mm Anchorage Force Tester
55MPa Force Test Equipment 5kg 6-40mm Anchorage Force Tester
55MPa Force Test Equipment 5kg 6-40mm Anchorage Force Tester
Specifications
Brand Name :
SAMYON
Model Number :
SY
Certification :
GB 50367
Place of Origin :
CN
MOQ :
1
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Carton
Name :
Anchor force tester
Standard :
GB 50550-2010
Max Pressure :
55MPa
Force range :
0-300KN
Bolt :
M6-M27
Anchorage :
6-40mm
Description

SY-10T/20T/30T Anchorage Force Tester For Checking Strengthening Concrete Structure

SY-10T/20T/30T Anchorage Force Tester

Application:
It is suitable for testing the anchorage force of several of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall. The anchorage test range will be from diameter 6mm to 40mm, and bolt diameter will be from M6 to M27. It is used to do verification for the anchoraging force, check whether it can reach the force requirement.

Standard:
GB 50367-2013 Code for design of strengthening concrete structure
GB 50550-2010 Code for acceptance of construction quality of strengthening building structures
CECS 22:2005 Technical specification for ground anchors
JGJ 145-2013 Technical specification for post-installed fastenings in concrete structures

Parameters:

Model SY-10T SY-15T SY-20T SY-30T
Manual pump Piston diameter 12mm
Max Pressure 55MPa
Weight 5kg
Oil cylinder Max force 100KN 150KN 200KN 300KN
Piston stroke: 60mm 80mm
Weight: 6kg 11kg 13kg
Central hole: 27mm 34mm 45mm
Digital pressure gauge Test range 0-100KN 0-150KN 0-200KN 0-300KN
Power supply 9v battery
Weight 0.4kg

Anchorage specifications

(Optional)

 φ6, φ8, φ10, φ12, φ14, φ16, φ18, φ20, φ22, φ25, φ28, φ32, φ36, φ40

Connector specifications

(Optional)

 M6, M8, M10, M12, M14, M16, M18, M20, M22, M24,M27

Features:

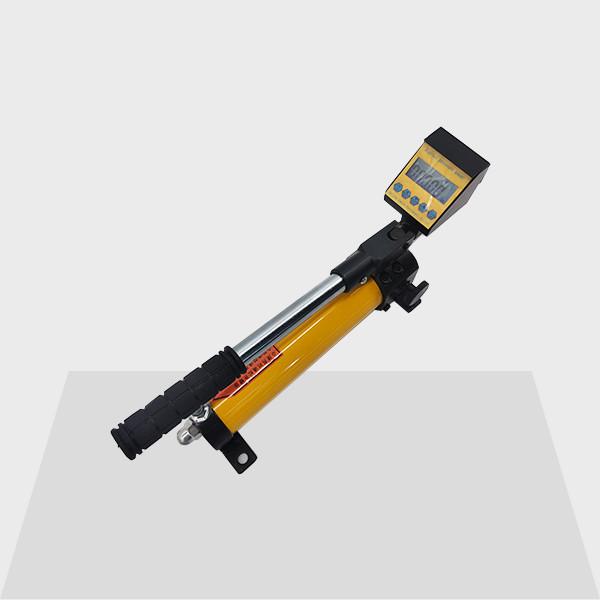

1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.
2. The manual pump is of High-Low pressure dual-Radial Piston design, so it will be suitable for small force testing and larger force testing.
3. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors.
