SY-40 40KN Multi-Functional Strength Tester With Three Support For Bonding Strength Testing

SY-40 40KN Multi-Functional Strength Tester

Application:

It is suitable for testing the concrete(C10~C80) strength and External wall tapestry brick bonding strength on site, and also suitable for testing the other pull strength. It adopts the Post-install pull-out test method for testing the concrete strength through testing the anchoring parts pull-out strength to calculate the concrete strength. Tapestry brick bonding strength is tested through three-point force of reaction to tapestry brick.

Standard:

ASTM C900-15 Standard Test Method for Pullout Strength of Hardened Concrete

GB 50367-2013 Code for design of strengthening concrete structure

CECS 69:94 Technical specification for inspection of concrete strength by Pull-out post-Insert methodJGJ 110-97 Testing standard for adhesive strength of tapestry brick of construction engineeringJGJ 126-2000 Specification for construction and acceptance of tapestry brick work for exterior wall

Parameters:

Features:

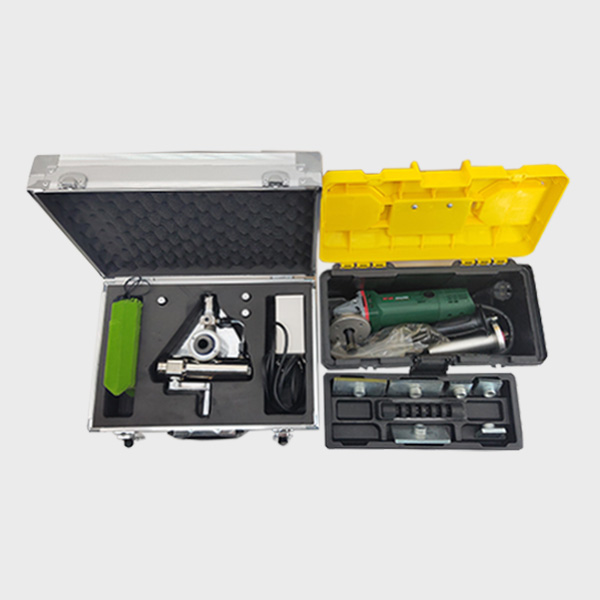

1. The instrument is composed of a through-core jack, a hand pump, a triangular chassis and a force measuring device. It has the characteristics of a dual-purpose machine, novel structure, small size, convenient operation, and complete functions.

2. The oil pump of the detector is loaded manually, with small driving torque, comfortable and reasonable rotating direction, continuous and uniform loading, and stable performance.

3. The instrument uses a single-chip microcomputer as the core intelligent data processor, the Li battery is rechargeable, and it can display, clear (which can eliminate the measurement error caused by the friction in the hydraulic system), peak holding, storage, and automatic shutdown.
