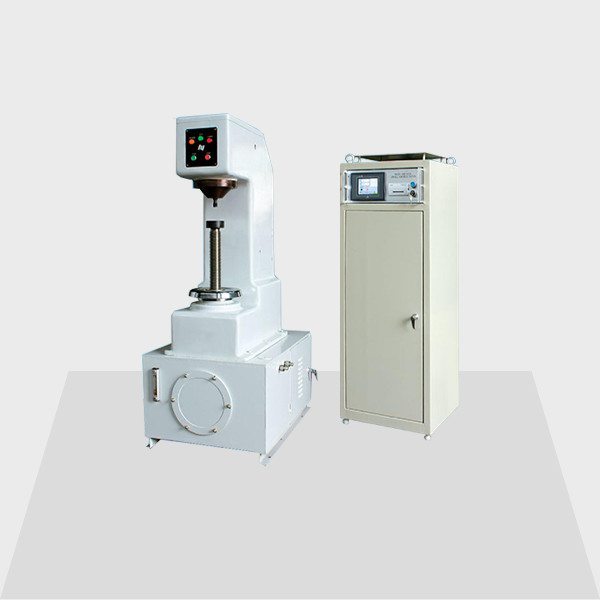

Automatic Brinell Hardness Tester Machine Model HBZ-3000A
Automatic Brinell Hardness Tester Machine Model HBZ-3000A
Specifications
Brand Name :
SAMYON
Model Number :
HBZ-3000A
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Wooden case
Name :
Hardness tester
Standard :
ISO 6506-2:2017
Test force :
7355.3, 9807
Measuring range :
32-650HBW
Depth of throat :
170mm
Max sample height :
450mm
Description

Model Hbz-3000a Automatic Brinell Hardness Tester

Application:

It is mainly used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc. It is especially suitable for on-line & on-spot determining of the hardness of test pieces in large batches.

Standard:

ASTM E10-2018 Standard Test Methods for Brinell Hardness of Metallic Materials

ISO 6506-2:2017 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

GB/T 231.2-2012 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

Parameters:

Item Name Details
1 Test force 7355.3, 9807, 29421N (750, 1000, 3000kgf)
2 Measuring range 32-650HBW
3 Depth of throat 170mm
4 Max. height of test piece 450mm
5 Dimension 920 x 720 x 1760mm
6 Weight approx. 900kg
7 Power 380V AC, 50 or 60Hz

Features:

1. Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

2. The attached printer can automatically print out the hardness testing result

3. Automatic testing process, high precision optical grating measuring system, automatic digital display, no human operating & reading errors

Standard accessories:

Flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ5, Φ10mm, 1 pc. each

Brinell standardized block: 2 pcs.

20X Readout microscope: 1 pc.

Automatic Brinell Hardness Tester Machine Model HBZ-3000A
