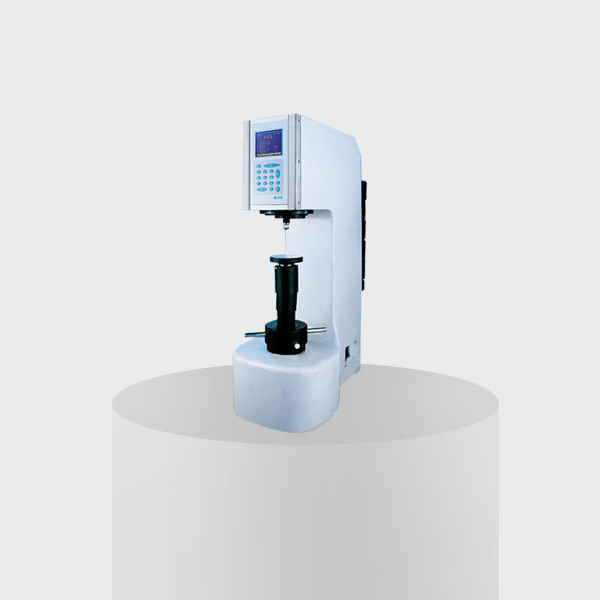

Model 200HB-3000 Brinell Hardness Tester for testing Brinell hardness of soft bearing alloys
Model 200HB-3000 Brinell Hardness Tester for testing Brinell hardness of soft bearing alloys
Specifications
Brand Name :
SAMYON
Model Number :
200HB-3000
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Wooden case
Name :
Brinell Hardness tester
Standard :
ISO 6506-2:2017
Test force :
1838.8, 2415.8
Measuring range :
8-650HBW
Depth of throat :
150mm
Max sample height :
280mm
Description

Model 200hb-3000 Brinell Hardness Tester

Application:

It is mainly used to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Standard:

ASTM E10-2018 Standard Test Methods for Brinell Hardness of Metallic Materials

GB/T 231.2-2012 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

ISO 6506-2:2017 Metallic materials - Brinell hardness test - Part 2: Verification and calibration of testing machines

Parameters:

Item Name Details
1 Test force 1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N (187.5, 250, 500, 750, 1000, 1500, 3000kgf)
2 Measuring range 8-650HBW
3 Depth of throat 150mm
4 Max. height of test piece 280mm
5 Dimension 570 x 330 x 910mm
6 Weight approx. 220kg
7 Power 220V AC or 110V AC, 50 or 60Hz

Features:

1. Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

2. Automatic test process, no human operating error

3. Large LCD display of testing process, easy operation

4. Weight loading system

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each

Brinell standardized block: 2 pcs.

20X Readout microscope: 1 pc.

　

Optional accessory

　Rectangle work table: 400 x 150 x 30 mm
