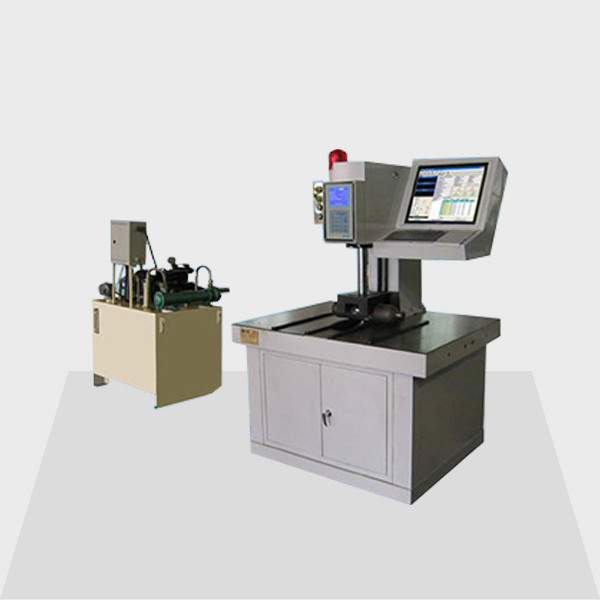

Model 320HRS-150 Rockwell Hardness Tester for testing Rockwell hardness of steel pipe
Model 320HRS-150 Rockwell Hardness Tester for testing Rockwell hardness of steel pipe
Specifications
Brand Name :
SAMYON
Model Number :
320HRS-150
Certification :
ISO
Place of Origin :
CN
MOQ :
1set
Price :
Can be negotiated
Payment Terms :
Western Union, MoneyGram, , T/T, D/P, D/A
Supply Ability :
100sets per week
Delivery Time :
3-5days
Packaging Details :
Wooden case
Name :
Rockwell hardness tester
Standard 1 :
ISO 6508-2: 2015
Standard 2 :
ASTM E18-2020
Test force :
588.4, 980.7, 1471N
Depth of throat :
176mm
Max sample height :
230mm
Description

Model 320hrs-150 Rockwell Hardness Tester

Application:

It is suitable to determine the Rockwell hardness of steel pipe, pressure vessel, drill stem and other cylinder type parts, may determine the Rockwell hardness test of plane type parts also.

Standard:

ISO 6508-2: 2015 Metallic materials – Rockwell hardness test – Part 2: Verification and calibration of testing machines and indenters

ASTM E18-2020 Standard Test Methods for Rockwell Hardness of Metallic Materials

GB/T 230.2-2012 Metallic materials –Rockwell hardness test – Part 2: verification and calibration of testing machines(scales A,B,C,D,E,F,G,H,K,N,T)

Parameters:

Item Name Details
1 Test force 588.4, 980.7, 1471N (60, 100, 150kg)
2 Testing scale Rockwell A, B, C
3 Min. scale value 0.1HR
4 Depth of throat 176mm
5 Max. height of test piece 230mm
6 Power supply 220V AC or 110V AC, 50Hz
7 Dimensions 1450 x 1080 x 835mm
8 Weight approx.1200kg

Features:

1. Precision conforms to GB/T230.2, ISO 6508-2 and ASTM E18.

2. Measuring head may move upwards and downwards, clamp the work piece and finish the hardness test automatically.

3. Automatically remove the oxidation-layer on the surface of work piece, and the surface removing depth is adjustable.

4. The first test point is effective. The measured hardness value may be converted to other hardness scales automatically.

5. Special software may store the test data in large capacity. It can also carry out data statistics, editing and analysing, etc.

Specifications

Standard accessories

Microcomputer: 1 set

Hydraulic station: 1 set

Device for calibrating test force: 1 set

Device for calibrating hardness: 1 set

Diamond cone penetrator: 1 pc.

1/16" steel ball penetrator: 1 pc.

1/16" steel ball: 5 pcs.

Rockwell standardized block: 5 pcs.
