Drop Testing Machine (MY-WDL-01 ), Sheet metal material with white color

Technical Specification

1. 10kg,50kg,100kg,200kg,500kg optional
2. Testing machine grade: level 0.5
3. Load precision: ±0.5%
4. Unit options: Kg,N,g,lb
5. Test space: 600mm (includes peeling fixture)
6. Displacement accuracy: ±0.005 mm
7. Displacement resolution: ≤0.001mm
8. Test speed range: 0-500mm / min
9. Speed ​​accuracy: Higher than ±1%f.s
10. Standard match: 1 set of stripping tool. (fixture can be customized according to sample)
11. Machine size: 500 x 450 x 1300 mm
12. Control mode: Panasonic servo + computer + board card
13. Power supply: 220V, 50/60HZ
14. Power: 600W

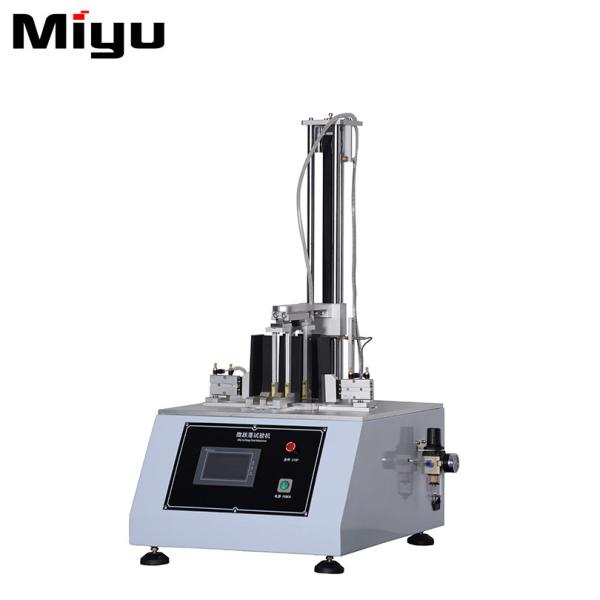

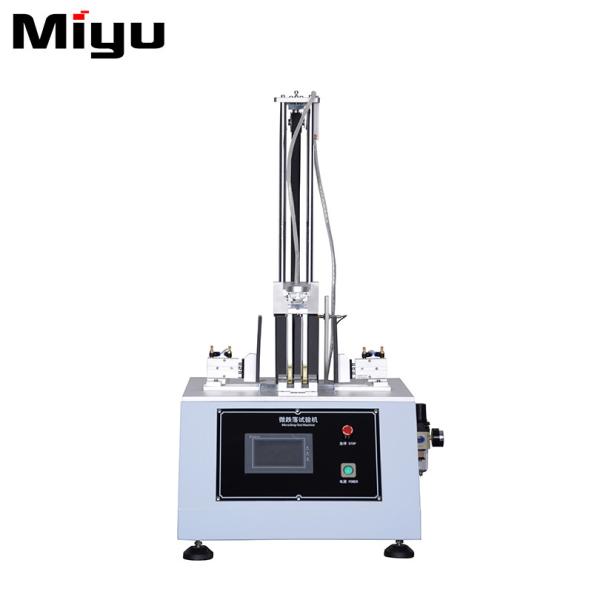

Tester pictures

Certificates

Partner

Shipment

By sea, by air, by truck, by courier, by train....

FAQ

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
