Universal environmental Test Machine IP5X IP6X Sand Dust Test Chamber for Dustproof Tester

(ISO9001: 2008 Certificate)

Working principle of chamber:
Centrifugal fan is the main source of dust movement, the high-speed operation of the fan so that dust into the fan due to the centrifugal force of the role of fan blades into the dust pipe dust. The wind speed of the pipeline is usually more than 7.5m / s (too low wind speed will make the dust precipitate in the pipeline will cause the test tube can not work). The dust line was sprayed from above into the test chamber and passed through the sample at a rate of> 2 m / s. Sand and dust chamber As the lower part of the working box for the funnel, it can precipitate down the dust into the lower part of the 72 × 50um filter. Through the vibrating motor vibration, less than the diameter of the filter hole in the dust and centrifugal fan sucked so back and forth.


Uses:
The Dustproof Test Chamber XB-OTS-IP65X is according to IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods), GB 4208-93 protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB 7000.1-1996, GB 7001-1986(protective casing grade of lamps),DIN40050 and IP5K0. The XB-OTS-IP65X is applied in LED or other luminaries for IP5X and IP6X test

Construction and materials:
1. Inner materials:SUS#304 stainless steel plate
2. External materials:A3 plate spray powder
3. With a large viewing window on the door
4. Unique duct design to ensure that chamber can
produce non-laminated vertical circulation flow


Technical parameters

1. Test area size: 800(D) x 800(W) x 800(H)mm/ 1000(D) x 1000(W) x 1000(H) mm
2. Height adjustment range of the frame and net: 0~750mm
3. Timing range: 0-99 hours and 59 minutes
4. Timing accuracy: ±1 minute
5. Load cycle control :0-99 hours and 59 minutes
6. Dust cycle Control: 1 second ~ 9999 minutes (Sand blasting time, 1s~9999s and 1s~9999 minutes, can be set freely).
7. Amount of test sand (or talc powder): 2kg/m3-4kg/m3
8. Test sand (or talc powder) specification: can pass through dry talc powder with sieve hole of 75um and metal wire diameter of 50um square sieve.
9. Shell material: stainless steel liner, shell electrostatic spray or stainless steel.
10. Temperature range: 15-65 ℃ (electrothermal heating)
11. Humidity range: 45-75%HR (natural humidity)

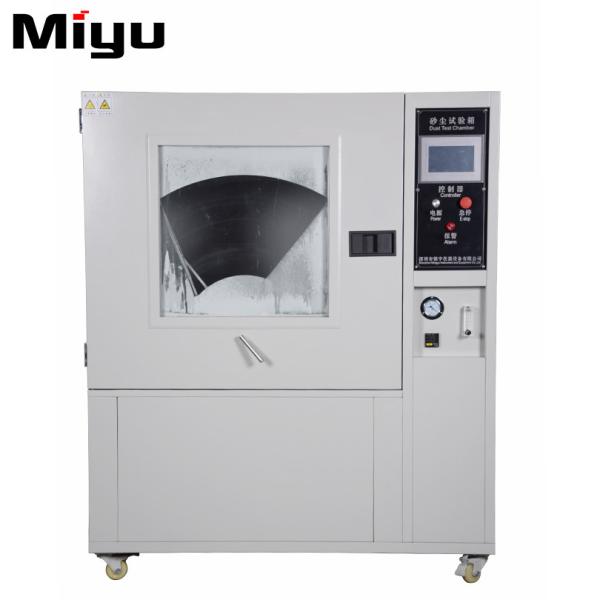

Equipment Picture

Certificates

Partner

Shipment

By sea, by air, by truck, by courier, by train....

FAQ

1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?

Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.

4. How to install and use the product?
We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
