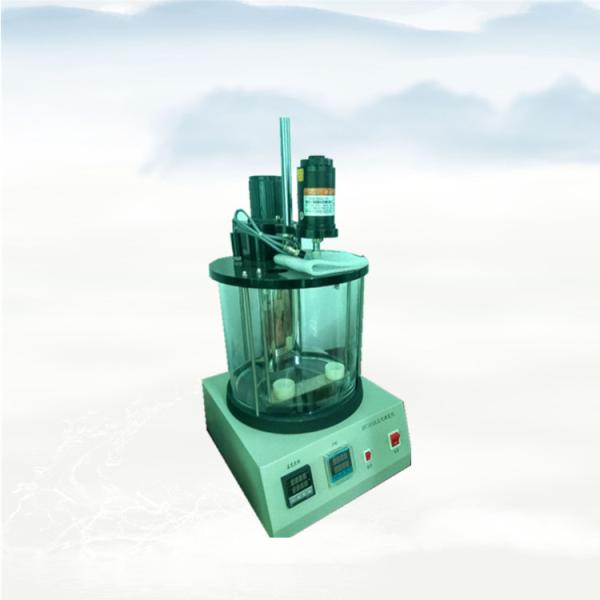

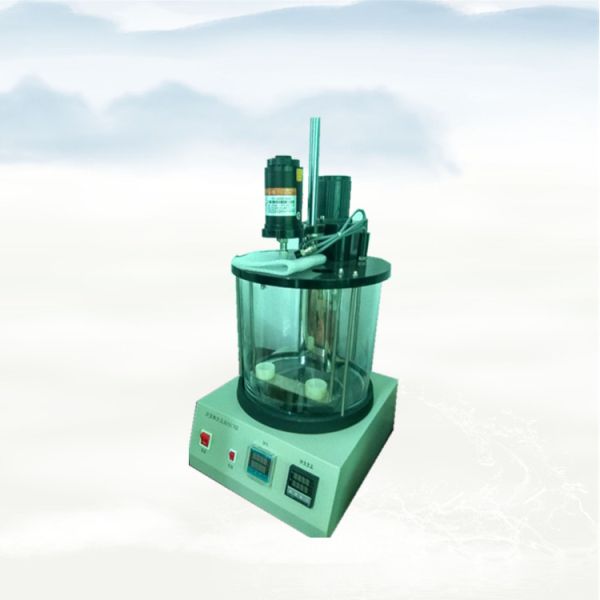

SD7305 Oil Anti-Emulsification Test Machine is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T7305 "Determination of demulsification performance of petroleum and synthetic liquids".ASTM D1401

petroleum and synthetic liquid water separability tester is designed and manufactured in accordance with the national standard GB/T7305 ASTM D1401. This instrument is suitable for measuring oils with a kinematic viscosity of 28.8~90mm²/s at 40℃. The test temperature is 54±1℃. It can also be used to determine oils with a kinematic viscosity greater than 90mm²/s at 40℃, but the test temperature is 82±1℃.

ASTM D1401 Portable Laboratory Oil Water Demulsibility Analysis Equipment/Anti-emulsification Test Apparatus

It is suitable for the determination method according to GB/T7305 standard to determine the separation ability of petroleum and synthetic liquid from water. It can be widely used in the fields of petroleum, electric power, chemical industry, colleges and universities, scientific research institutes and other units.

ISO　6614,ASTM　D1401,DIN　51599,JIS　K2520,IP　19

I. Main technical features

1, the use of small cylinder table structure, with small volume, easy to operate, beautiful appearance and other advantages.

2, the bath adopts the motor automatic mixing, the temperature is uniform, the bathtub cover has two sample holes, can be placed at the same time two samples according to this test.

3, the sample stirring device is convenient to lift, stirring shaft in the test tube stirring concentricity is good, no shaking or touching the test tube wall.

II. Main technical parameters and indicators

1, working power supply: AC 220V±10%, 50Hz;

2, Temperature control range: room temperature ~ 99.9℃;

3, temperature control accuracy: ±1℃;

4, temperature resolution: 0.1℃;

5, temperature display form: digital display;

6.Time control range: 1 seconds to 9 minutes and 59 seconds;

7, stirring speed: 1500±15r/min;

8, temperature control heating power: 1000W;

9, Ambient temperature: room temperature ~ 35℃;

10, relative humidity: ≤ 85%;

11.Power consumption of the whole machine: no more than 1200W

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
