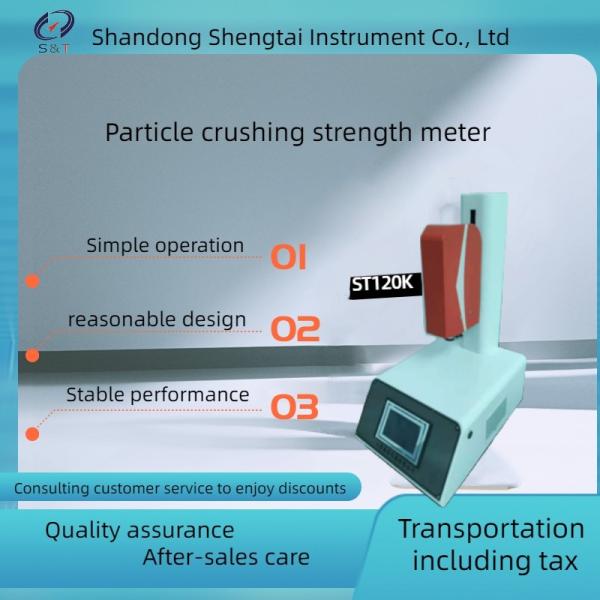

ST120K vertical automatic fertilizer hardness tester

The ST120K automatic fertilizer hardness tester mainly includes the special software for single machine version of the main machine of the quality and configuration instrument, the special fertilizer hardness probe and other accessories.
The basic structure generally consists of a mechanical device that can deform the sample, a fitting for holding the sample and a recording system that records the force, time and rate of deformation.
Test over distance, time and force test and result analysis, physical property analyzer reflects mainly related to the mechanical characteristics of texture feature, the result is of high sensitivity and objectivity, and can be equipped with the special software for accurate quantitative processing, the results by quantitative indicators for objective comprehensive evaluation items.

|
Product introduction:
• used for testing particle hardness such as fertilizer
• test indicators: hardness and other physical indicators
• the testing process was completed via an online LCD touch screen
• the transmission mechanism adopts ball screw, the transmission is stable and accurate;
Imported servo motor, low noise, accurate control
• 24 high precision AD converter and high precision force sensor are adopted to ensure the rapidity and accuracy of instrument force data acquisition.
• real-time display of force-time, force-deformation, force-displacement, etc

Main technical parameters:

Technical parameter

(1) Force measurement resolution: 1/10000 (e.g., 200kg ÷ 10000=0.02kg);

2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)

(2) Force measurement accuracy: better than ± 1%;

(3) Displacement resolution: 0.01mm

(4) Test speed: 0.5-500mm/min;

(5) Test stroke: 200mm;

(6) Machine weight: about 18kg;

(7) Overall dimension: 300 * 420 * 650 mm (w * d * h)

(8) Power supply: single-phase, AC220v50hz.

Product Packing List

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
