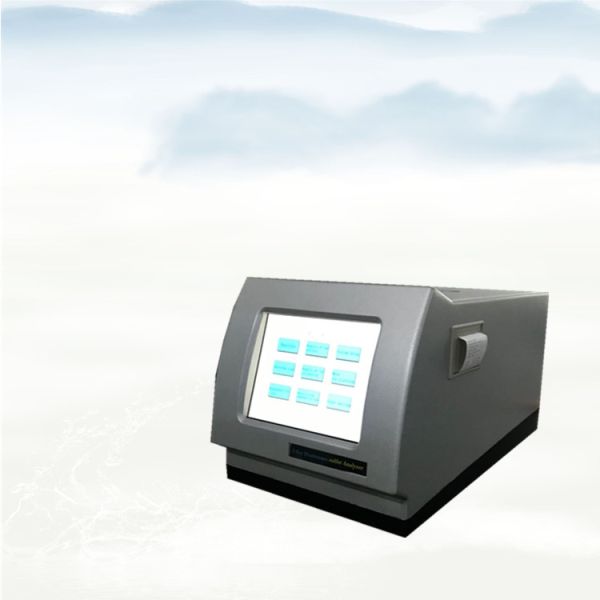

SH407 X Fluorescence Spectral Sulfur Analyzer adopts the principle of energy dispersion, mechanical and electrical integrated microcomputer design, rapid and accurate analysis.

Its repeatability and reproducibility are in line with the relevant requirements of national standards GB/T 17040-2008 "Determination of Sulfur Content in Petroleum Products (Energy Dispersive X-ray Fluorescence Spectrometry)" and GB/T 11140-1989 "Determination of Sulfur Content in Petroleum Products (X-ray Spectrometry)", and fully meet the requirements of American national standard ASTMD4294-02.

SH407 Fluorescence Sulfur Analyzer mainly measures the total sulfur mass percentage content of crude oil, petroleum, heavy oil, diesel oil, kerosene, gasoline, naphtha, but also can measure the total sulfur or sulfur compounds content in coal chemical products (such as primary benzene), other liquid samples;

It can also be used for the determination of total sulfur or SO3 content in fine powder samples.

I. Main technical features

1. Adopting the fluorescence intensity ratio analysis method, the detection variety is wide, the detection range is wide, the analysis speed is fast, and the consumption of the standard sample is small.

2, the use of mechanical and electrical integrated microcomputer design, liquid crystal display, man-machine interface dialogue, with automatic diagnosis function, to judge the working state of the instrument and electrical parameters, temperature, air pressure automatic correction, carbon hydrogen ratio (C/H) can also be corrected.

3. Use disposable Mylar sample cup to avoid cross contamination.

4, safe X-ray protection measures, after strict testing, no X-ray power radiation damage to individuals and groups.

II. Main technical parameters and indicators

1, sulfur measurement range: 10ppm ~ 5%

2, precision: a: repeatability (r): < 0.02894(X+0.1691);

B: Reproducibility (R): < 0.1215(X+0.05555).

3. Sample size: (2 ~ 3) mL (equivalent to the sample depth of 3mm ~ 4mm).

4, measurement time: 60 seconds, 120 seconds, 240 seconds, 300 seconds, 600 seconds, arbitrary setting.

5, sample measurement: single sample automatic measurement, measurement times of 2, 3, 5, 10, 50 arbitrary setting, the end of the measurement to give the average value and standard deviation.

6. Number of calibration curves: the instrument can store 9 calibration curves, 5 of which are one-dimensional linear lines and 4 of which are binomial parabolas.

7. Calibration (calibration) samples: 12 (10ml/ piece).

8, working power supply: AC220V±20V, 50Hz;

Rated power 30W

10, dimension: 620mm×530mm×400mm(length × width × height).

11, weight: 30kg (net weight).

Packaging & Delivery

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.

Port Any port of China

Lead Time :

OUR service

We advocate a technical marketing model, is a professional service, a pre-sale service, in-sales service and after-sales service throughout the body of trusted professional services.

Pre-sales service to provide customers with pre-sales technical advice, design of the test plan, assist users to complete the test, assist users in making inquiries for special auxiliary equipment for components.

After the contract is signed, we still negotiate and communicate with the user, confirm the specific test items and specific test requirements of the user, and communicate with the user's user department or user further. To ensure that the equipment provided to the user can fully meet the overall requirements of the user.

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
