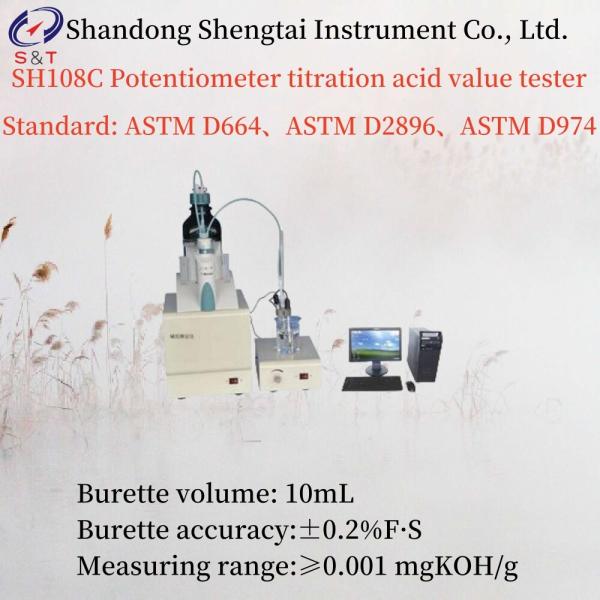

SH108C Potentiometer titration acid value tester

SH108C potentiometric titration automatic acid value meter is designed according to GB/T 7304-2000 petroleum products and lubricant acid value determination method (potentiometric titration method) equivalent ASTMD664 and GB/T 18609 original oil acid value determination (potentiometric titration method) and other standards. The instrument uses potentiometric titration method to determine the end point of titration automatically and automatically calculate the results.

The instrument is suitable for the determination of acid value in crude oil, petroleum products, lubricants and other samples in the petrochemical industry. The determination of acid value is one of the important indicators to determine the quality of oil.

The titration system is made of imported components, which is made of corrosion-resistant materials. The measuring results are accurate and the service life is long.

Potentiometric Titration Microcomputer Total Acid Number Tester for Acid Value Measuring Device Astm d664

Automatic Potentiometric Titrator/Potentiometric Titration Equipment for Content Analysis

Main features:

General computer and operating system, special software Chinese window interface, mouse, keyboard operation, man-machine dialogue easy to understand.

◆ Real-time display of potential curve (E-V), first derivative curve (DE/DV), electrode potential (E), titration volume (V), titration results

◆ Whole process titration data browsing, powerful data processing function, easy to re-process the results;

The titration results, data and curves are stored in a large amount. The titration process data can be saved as Excel documents for future inquiry

Automatic printing curve, results and titration data

◆ Dynamic equivalence titration (DET), equivalence equivalence titration (MET), preset endpoint potential titration (SET)

Automatic "end point" judgment, effectively filter out false "end point"

◆ Automatic cleaning, automatic fluid filling, automatic fixed value liquid adding

Technical parameters:

◆ Electronic unit basic error: 0.1%F·S ± 0.1mV

◆ Minimum titration volume: 0.001ml

◆ Precision: in line with or better than the relevant standards
