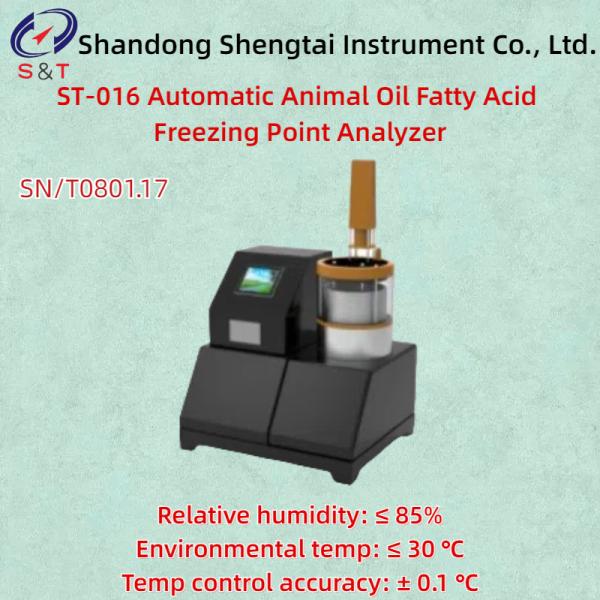

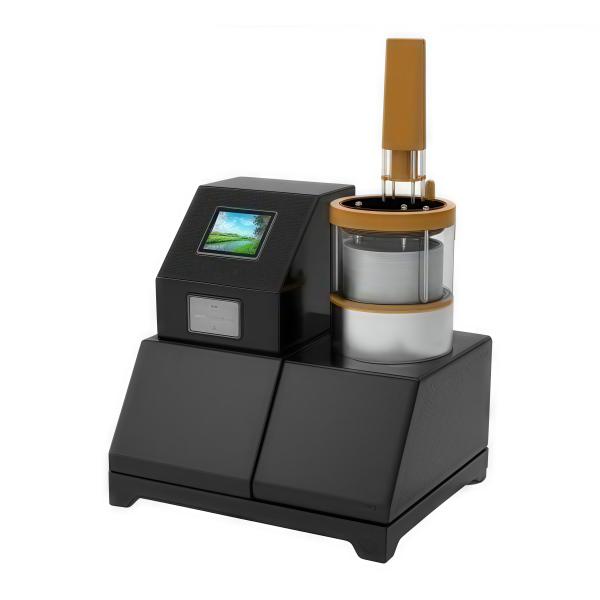

ST-016 Automatic Animal Oil Fatty Acid Freezing Point Analyzer
Overview:
The ST-016 automatic fatty acid freezing point analyzer is designed and manufactured according to the standard SN/T0801.17 "Determination of Freezing Point of Fatty Acids in Import and Export Animal Oils and Fats" and the 2025 Chinese Pharmacopoeia 0713 Fat and Fatty Oil Determination Method, and is suitable for determining the freezing point of fatty acids in animal oils and fats.
Technical Parameter:

● Working power supply: AC220V±10%；50Hz
● Working cold bath: double-layer vacuum glass bath
● Cold bath temperature control: - 20℃～100℃
● Temperature measurement range: - 30℃～ +80℃
● Temperature sensor: PT100 imported temperature sensor
● Temperature control accuracy: ± 0.1 ℃
● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;
● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage
Output format: The output format of the result USB drive is CSV or Excel.
● Data Management: Can be connected to the LIMS system (optional)
● Account management: Audit tracking account hierarchical management, 3-level permission management (optional).
● Data protection: equipped with date and password setting function.
● Standard printing: Standard micro printer with automatic measurement and needle printing
● Data extension: Laser printer interface, can be connected to HP1108 laser printer (optional)
● Remote upgrade: Equipped with TCP network transmission function, software can be remotely upgraded later
● Data memory: The memory of the microcomputer instrument can be expanded to 16GB.
● Bath liquid stirring: The stirring motor automatically stirs, with a power of 6W and a speed of 1200r/min.
● Refrigeration system: imported refrigeration compressor.
● Sample mixing: synchronous reduction motor, once per second.
● Environmental temperature: ≤ 30 ℃
● Relative humidity: ≤ 85%.
● Power consumption of the whole machine: About 1500W.
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
