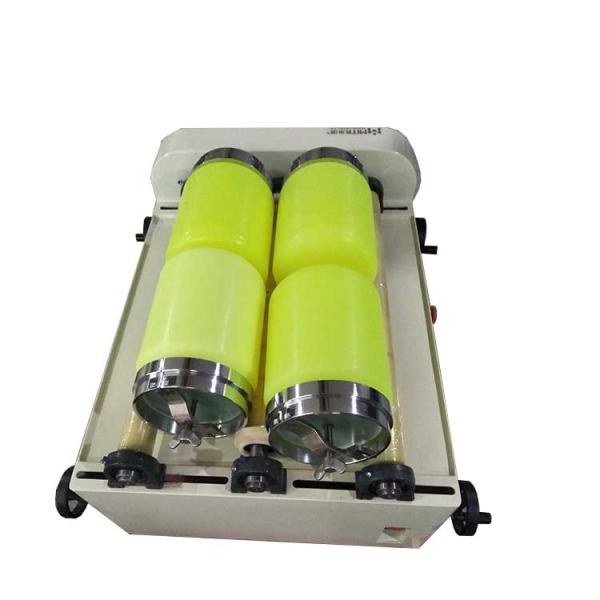

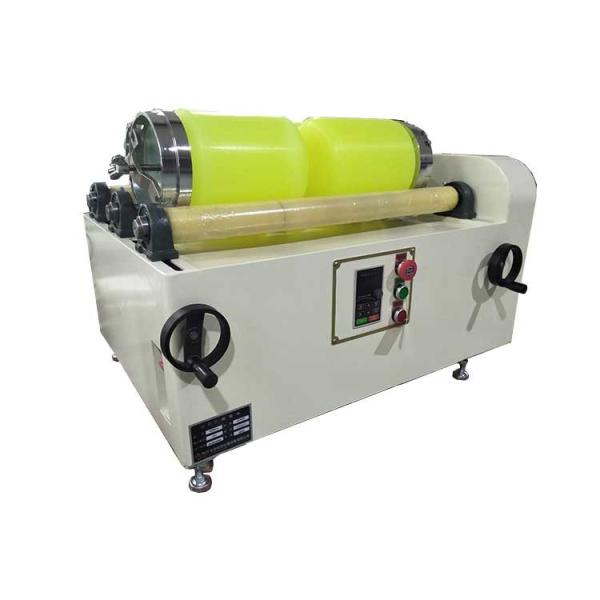

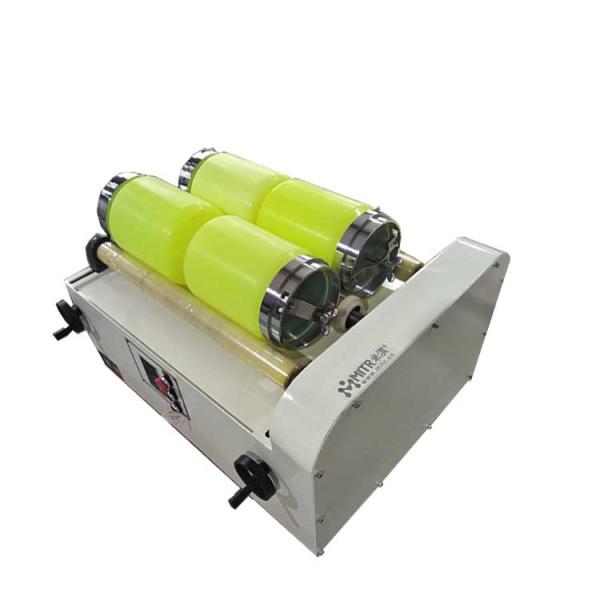

4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4
4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4
4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4
4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4
Specifications
Brand Name :
MITR
Model Number :
GMS1-4
Certification :
ISO9001:2008/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT,Western union
Supply Ability :
10set per week
Delivery Time :
7-15 working days
Packaging Details :
Export Standard Wooden Package
Work station :
4
Jar capacity :
0.5-1L
Roller layer :
1
Speed range :
0-300 rpm
Current :
220V
Motor power :
0.75Kw
Jar material :
stainless steel/nylon/alumina/pu/PTFE/ceramic
Dimension :
580*510*410mm
Description

4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4

Main features

Frequency conversion control speed,program control,

Adjusting the roller wheelbase by the hand wheel to prevent the jar movement.

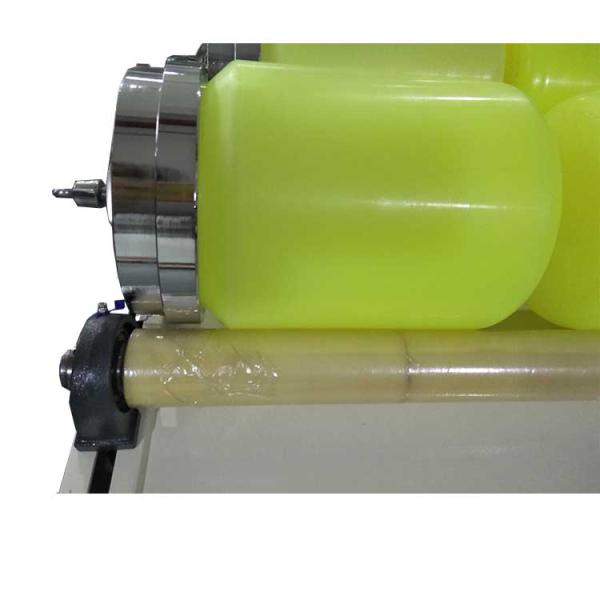

The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar deformation.

Feeding granularity less than 3mm,soil <=10mm

Discharging granularity over 300 mesh

Application

Widely used in electronic, magnetic material, bio-medicine, ceramic glaze slurry, non-metal mine, new material and many more.

Technical parameter

Model: GMS1-4

Material: Stainless steel

Grinding jar volume: 0.5~1L

Grinding jar qty: 4pcs

Grinding layer: 1

Roller: 3

Roller DN*loading length: Φ40*180

Ajustable handwheel: 62-160

Ajustable jar DN: Φ50-Φ160

Jar speed: 0-300rpm

Electric: 220V

Power: 0.75Kw

Overall dimension: 580*520*410mm

Drive motion: Belt

4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4

4 Grinding Station Industrial Ball Mill , Ball Grinding Machine 380V GMS1 - 4
