Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise
Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise
Specifications
Brand Name :
MITR
Model Number :
YXQM-2L
Certification :
ISO9001:2008/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT,Western union
Supply Ability :
10set per week
Delivery Time :
7-15 working days
Packaging Details :
Export Standard Wooden Package
Type :
verticle
Revolution :
400rpm
Rotation :
800rpm
Current :
220V 50HZ
Jar capacity :
2/4pcs
Sound :
low noise
Description

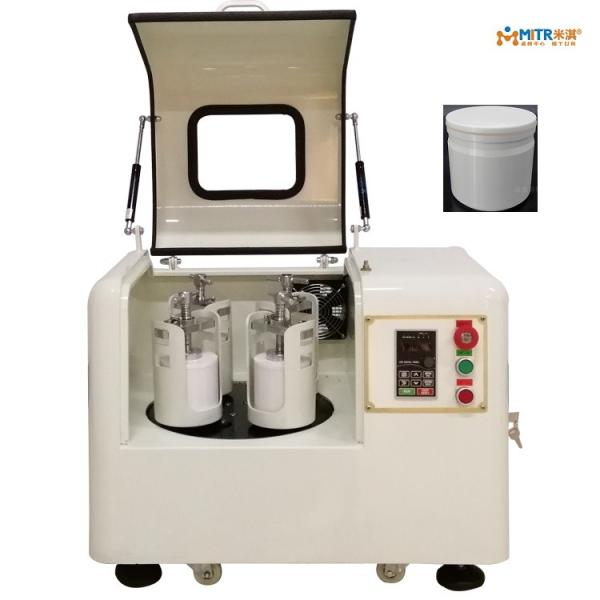

Metal Alloying Equipment Lab Ball Mill 2L Powdering Device

1. Main application

Size reduction, pulverization. Mainly used in the fields of electronic ceramics, structural ceramics, magnetic

materials, catalysts, biology, medicine, metallurgy, ceramics, lithium batteries, new materials, etc.

2. Working principle

4 jars installed on the main plate which runs clockwise simultaneously when the plate starts turning. Balls impact

material at high speed which grinds and mixes particles. Dry and wet grinding and mixing various material with

different granularities. Min. particle 0.1μm. 2 or 4 jars working at the same time. Max. capacity at 2/3 jar. Feeding

granularity: solid ≤10mm, others ≤3mm. Discharging Min. particle 0.1μm.

3 Parameter

Model YXQM-2L
Electric 220V 50HZ
Power 0.75Kw
Inverter 0.75Kw
Grinding jar 50-500ml
Vacuum jar 50-250ml
Revolution 5-400rpm
Rotation 10-800rpm
Noise ＜50db

Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise

Grinding jars:

Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise
