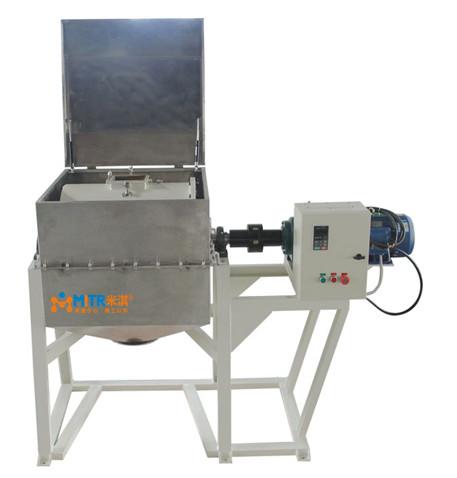

Wqm-300 Sus304 Stainless Steel Ball Mill , Nano Grinding Mill 300L Capacity
Wqm-300 Sus304 Stainless Steel Ball Mill , Nano Grinding Mill 300L Capacity
Wqm-300 Sus304 Stainless Steel Ball Mill , Nano Grinding Mill 300L Capacity
Wqm-300 Sus304 Stainless Steel Ball Mill , Nano Grinding Mill 300L Capacity
Specifications
Brand Name :
MITR
Model Number :
WQM-300
Certification :
ISO9001:2008/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT,Western union
Supply Ability :
10set per week
Delivery Time :
7-15 working days
Packaging Details :
Export Standard Wooden Package
Material :
SUS 304 stainless steel
Feature :
Inverter, direct-connect motor
Power :
5.5Kw
Currrent :
380V
Jar size :
Φ720*750
Capacity :
300L
Description

Light Horizontal Ball Mill Wqm-300 Sus304 Stainless Steel Lining

A. Introduction

It is ultrafine grinding and mixing equipment for laboratory and small batch production. With tight structure, high efficiency and particle uniformity, it is priority selection for science research, teaching, experiment and production, widely using in electronic material, magnetic material, bio-medicine, ceramic glaze, nonmetallic mine, new material and so on. Dry milling. With discharge device, easy to separate ball and particle.

B. Lining material option and volume range

1.alumina/high purified alumina(20-1000L)

2. stainless steel (20-1000L)

3. carbon steel(20-1000L)

4. nylon (20-60L)

5. PU(20-500L)

6. PTFE(20L-500L)

C. Feeding granularity range

General mineral＜3mm, brittle material＜10mm

D. Discharge particle range

44μm in general according to material hardness and milling time.

E. Using condition

A traditional ball mill, majorly used in primary grinding and mixing. The main theory is that ball and material moving in a same direction are dropping from the top to break the material into powder.

Model Volume Speed Power(KW) Feeding granularity volume Ball volume Feeding entry Jar size
WQMG-10 10L 0-56r/min 0.55 4L 3L ø110 Ф230χ240
WQMG-20 20L 0-50r/min 0.55 8L 7L ø120 Ф290χ300
WQMG-30 30L 0-47r/min 0.75 10L 9L ø130 Ф340χ350
WQMG-50 50L 0-45r/min 0.75 20L 19L ø140 Ф380χ400
WQMG-70 70L 0-41r/min 1.1 28L 21L ø150 Ф440χ460
WQMG-100 100L 0-38r/min 1.5 40L 30L ø 160 Ф500χ520
WQMG-200 200L 0-35r/min 2.2 80L 60L ø 165 Ф630χ650
WQMG-300 300L 0-31r/min 3 120L 90L ø 219 Ф720χ750
WQMG-500 500L 0-28r/min 4 200L 150L ø 219 Ф870χ870
WQMG-1000 1000L 0-26r/min 7.5 400L 300L ø 273 Ф1070χ1100
