Industrial Planetary Ball Milling Machine 2l With Zirconia Jar For Catalyst
Industrial Planetary Ball Milling Machine 2l With Zirconia Jar For Catalyst
Industrial Planetary Ball Milling Machine 2l With Zirconia Jar For Catalyst
Industrial Planetary Ball Milling Machine 2l With Zirconia Jar For Catalyst
Specifications
Brand Name :
MITR
Model Number :
YXQM-2L
Certification :
ISO9001:2008/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT,Western union
Supply Ability :
10set per week
Delivery Time :
7-15 working days
Packaging Details :
Export Standard Wooden Package
Capacity :
2L
Current :
220V 50HZ
Motor Power :
0.55Kw
Revolution :
400
Rotation :
800
Control :
PLC control
Jar volume :
50-500ml

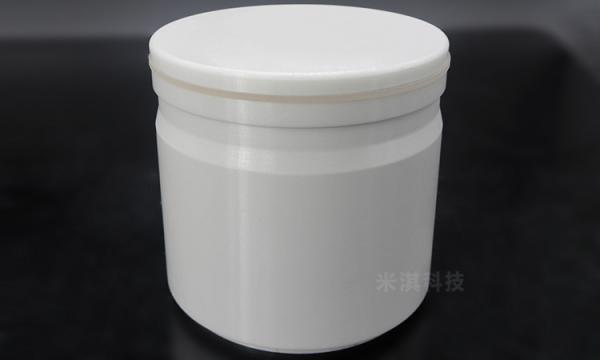

Jar material :
zirconia
Description

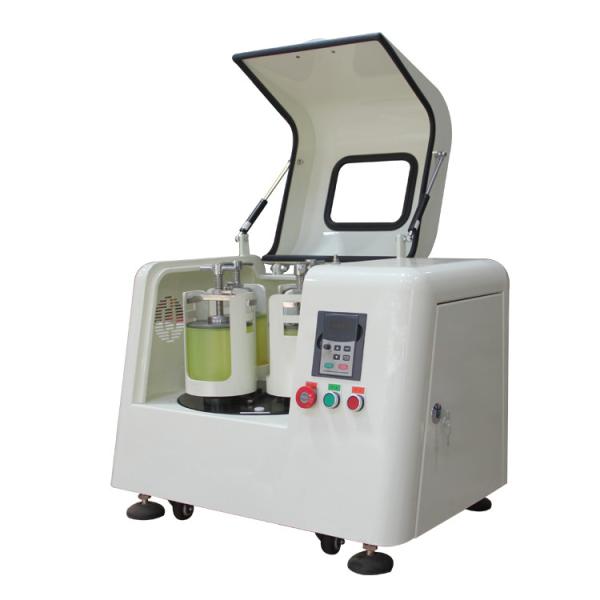

Vertical Planetary Ball Mill 2l With Zirconia Jar For Catalyst

1. Main application

Planetary ball mills are mainly used in the fields of electronic ceramics, structural ceramics, magnetic materials, catalysts, biology, medicine, metallurgy, ceramics, lithium batteries, new materials, etc.

2. Operation principle

Planetary Ball Mill has four ball grinding jars installed on one turntable. When the turntable rotates, the jar axis makes planetary movements that the ball mill jar revolution around the axis of the rotary disc and at the same time it rotation around its axis. The balls and samples inside the jars are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm(1.0*10mm-4).

Working mode: Two or four ball milling jars working at the same time and the maximum sample loading amount: Volume of ball milling jar 2/3, feeding granularity: soil material ≤ 10mm other material ≤ 3mm discharge granularity: the minimum can up to 0.1um (i.e. 1.0 *10mm-4).

3.Technical parameters of planetary ball mill

Model Spec. Jar option Remarks Current Power Kw Inverter Kw Continuous working time h Positive inversion min Speed rpm Sound
Volume mm Qty pc Vaccum Jar Revolution Rotation
ZXQM-2L 2L 50-500 2/4pcs 50-250ml 220V 50HZ 0.75 0.75 1-9999 1-9999 5-400 10-800 50db

Industrial Planetary Ball Milling Machine 2l With Zirconia Jar For Catalyst

Industrial Planetary Ball Milling Machine 2l With Zirconia Jar For Catalyst
