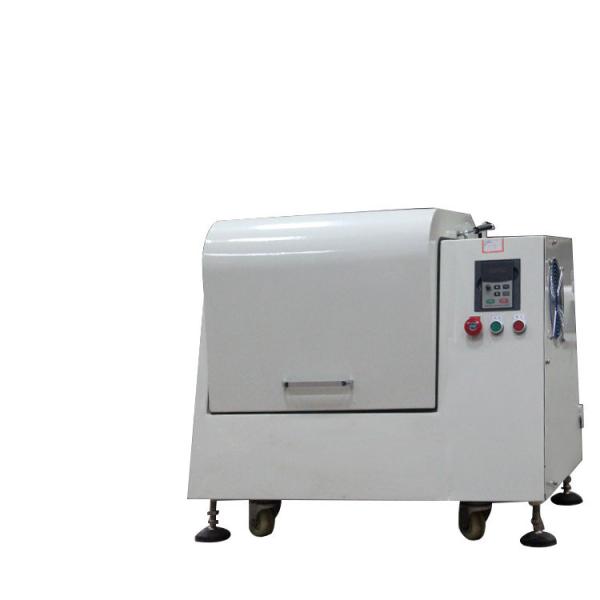

Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea
Specifications
Brand Name :
MITR
Model Number :
YXQM-4L
Certification :
ISO9001:2008/CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
TT,Western union
Supply Ability :
10set per week
Delivery Time :
7-15 working days
Packaging Details :
Export Standard Wooden Package
Product Name :
Small Lab Ball Mill
Application :
Pharmaceuticals,food,geology,metallurgy,agriculture,glass,ceramics,aviation chemicals,biology,materials,lithium power,electronics,plants, biology and so on.
Power :
220V 50HZ
Size/weight :
78*58*68cm/120kg
Jar Volume :
50ml-500ml
Revolution :
5-400r/min
Rotation :
10-800r/min
Feeding :
Soil material≤10mm,others ≤3mm
Discharge :
minimum down to 0.1μm
Material :
Carbon steel
Description

4l Lab Ball Mill Nano Grinding Mill/Vertical Wet And Dry Ball Mill For Food/Tea

Working principle:

The planetary ball mill performs mixing by continually revolving the large plate and rotating the containers concurrently. Both the plate revolution (centrifugal) speed and container rotation (planetary) speed are independently adjustable. This unique mixing capability allows the operator to design precise solutions for mixing various systems. To further improve the mixing efficiency, grinding media can be added into the containers. Our machines are built in such a way that the weight balancing is required. Our machines run very quietly with noise <50 (dB). Ball Mill Jars and Balls are sold separately.

Application Area of lab vertical planetary ball mill:

Geology and Mineralogy: rock, gravel, sand, minerals

Ceramics: porcelain, sintered ceramics, clay, fireclay

Chemistry: pesticides, fertilisers, salts, inorganic and organic materials

Biology: plants, leaves, freeze-dried samples

Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets

Metallurgy: ores, sinters

Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating

Feature:

Efficient grinding for superior results up to 0.1µm

Adjustable speed ratios

Grinding jar volumes from 50ml to 5L in 4 different materials at the same time.

Reliable for continuous use

Oil seal mute technology: Our machines run very quietly with noise <50 (dB)

Safety gear lock

Wet And Dry Grinding Ball Mill For Food / Tea

MITR oil seal mute planetary ball mill has the universal wheel to push while moving and has the supporting foots to stable while operation.

Wet And Dry Grinding Ball Mill For Food / Tea

There are three series of planetary ball mill: Vertical ball mill; Horizontal ball mill;Full direction ball mill

Technical parameter:

Model Spec With ball mill jar Remarks
Spec(ml) Quantities
YXQM-0.4L 0.4L 50-100ml 2 or 4 With 50ml vacuum ball mill jar
YXQM-1L 1L 50-250ml 2 or 4 With 50-100ml vacuum ball mill jar
YXQM-2L 2L 50-500ml 2 or 4 With 50-250ml vacuum ball mill jar
YXQM-4L 4L 50-1000ml 2 or 4 With100-500ml vacuum ball mill jar
YXQM-8L 8L 500-2000ml 2 or 4 With250-1000ml vacuum ball mill jar
YXQM-10L 10L 500ml-2.5L 2 or 4 With 250-2.5L vacuum ball mill jar
YXQM-12L 12L 1L-3L 2 or 4 With 500-3L vacuum ball mill jar
YXQM-16 16L 1L-4L 2 or 4 With 500-4L vacuum ball mill jar
YXQM-20L 20L 1L-5L 2 or 4 With 1000-5L vacuum ball mill jar
YXQM-40L 40L 4L-10L 2 or 4 With 3L-10L vacuum ball mill jar
YXQM-60L 60L 6L-15L 2 or 4 With 5L-15L vacuum ball mill jar
YXQM-80L 80L 6L-20L 2 or 4 With 5L-20L vacuum ball mill jar
YXQM-100L 100L 10L-25L 2 or 4 With 9L-25L vacuum ball mill jar
Model Voltage Motor power(KW) Inverter power KW

Total timing

(min)

 Alternating Run Time Rotation speed r/min Noise ≤db
Revolution speed Rotation speed
YXQM0.4L 220V 50HZ 0.55 0.55 1-9999 1-9999 5-450 10-900 <50db
YXQM1L 220V 50HZ 0.55 0.55 1-9999 1-9999 5-450 10-900 <50db
YXQM2L 220V 50HZ 0.75 0.75 1-9999 1-9999 5-400 10-800 <50db
YXQM4L 220V 50HZ 0.75 0.75 1-9999 1-9999 5-400 10-800 <50db
YXQM8L 220V 50HZ 1.5 1.5 1-9999 1-9999 5-320 10-640 <58db
YXQM10L 220V 50HZ 1.5 1.5 1-9999 1-9999 5-320 10-640 <58db
YXQM12L 380V 50HZ 1.5 2.2 1-9999 1-9999 5-320 10-640 <58db
YXQM16L 380V 50HZ 2.2 2.2 1-9999 1-9999 5-280 10-560 <58db
YXQM20L 380V 50HZ 3.0 3.7 1-9999 1-9999 5-230 10-460 <60db
YXQM40L 380V 50HZ 5.5 7.5 1-9999 1-9999 5-220 10-440 <63db
YXQM60L 380V 50HZ 7.5 7.5 1-9999 1-9999 5-180 10-360 <65db
YXQM80L 380V 50HZ 7.5 11 1-9999 1-9999 5-180 10-360 <65db
YXQM100L 380V 50HZ 11 11 1-9999 1-9999 5-180 10-360 <68db

Ball Mill Jars And Ball Mill Grinding Media

Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.

Wet And Dry Grinding Ball Mill For Food / Tea
Wet And Dry Grinding Ball Mill For Food / Tea

Join an exhibition

Wet And Dry Grinding Ball Mill For Food / Tea

Company Information

Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.

The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
