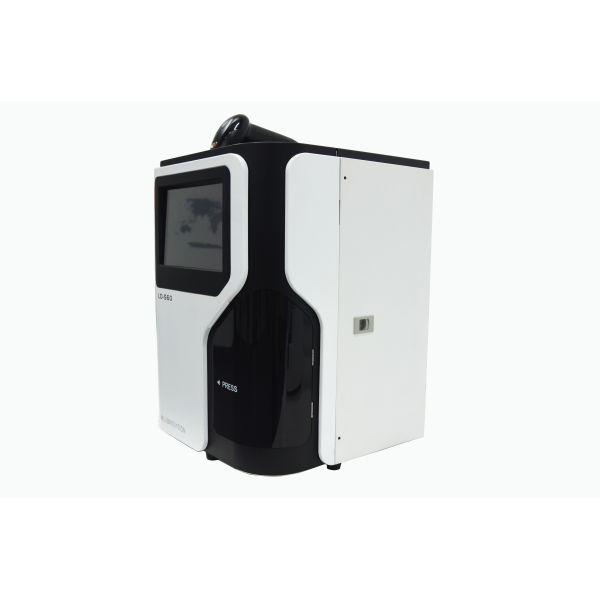

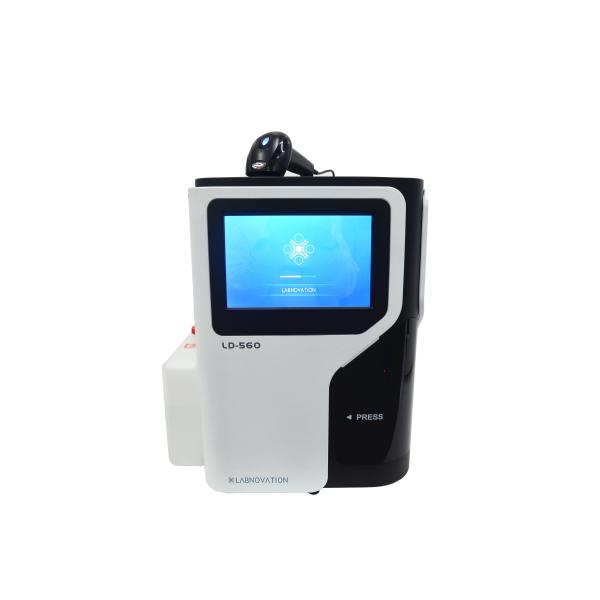

Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic
Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic
Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic
Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic
Specifications
Brand Name :
LABNOVATION
Model Number :
LD-560
Certification :
IFCC, NGSP
Place of Origin :
Shenzhen, China
MOQ :
1 Unit
Price :
USD7,000.00-12,000.00/Unit
Supply Ability :
100 Units/Day
Delivery Time :
15-20 working days
Packaging Details :
Carton Size: 480mm×480mm×615mm, Gross Weight: 28kgs
Principle :
HPLC (High Performance Liquid Chromatography)
Test Speed :
90s/test
Sample types :
Whole blood or Pre-diluent sample
Test blood volume :
5μL in whole blood mode 150μL in pre-diluted mode
Sample capacity :
20 samples
Sample loading method :
Continuous automatic sample loading
Column test quantity :
3000
Reagent pack :
600T（Reagent）/ 3000T（Column） separate
Eluent Kind :
2 kinds
Data storage :
5000
Built-in Thermal Printer :
Yes
CV :
<2%
Test range :
3.0%~18.0%
Operation screen :
10 inch Full color LCD display
Weiht :
28kg
Dimensions :
378(L) ×380(W)×510(H)mm
Shelf Life :
5 years
Description

Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic

Intended use
The Fully automated Labnovation LD-560 Hemoglobin Analyzer offers the fast throughput of HbAlc results in 90 seconds, with Hb variant detection, providing the outstanding solution for quick and reliable diabetic monitoring. No sample preparation and very little hands-on time by the operator is required for the LD-560 Analyzer.
Principle
Using high performance liquid chromatography (HPLC), the stationary phase used is a weakly acidic cation exchanger.
Glycosylation of hemoglobin will result in the loss of cations on the surface of hemoglobin without being charged, and non-glycosylated hemoglobin has a positive charge. According to the different charged properties of hemoglobin, eluents with different pH values and ionic strengths are used sequentially, and several hemoglobin components including HbA1c are separated by high performance liquid chromatography. Each component is detected by a single-wavelength colorimeter, and the detected data is processed by a computer to calculate the percentage content of HbA1c in the total hemoglobin.

Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic

Specification

Instrument Manufacturer Lanovation
Manufacture Location China
Model No LD-560
Dection information Principle Method HPLC
Detection Mode Fast Mode, Variant Mode
Detection Method Single wavelengh colorimetry
Wavelength 420nm
Test time 90 Seconds
Test Speed Throughtput 40 samples per hour
Sample information Sample types Whole blood or Pre-diluent sample
Test Blood Volume 5μL in whole blood mode
150μL in pre-diluted mode
Sample Capacity 20 Tubes
Sample Loading Method Continuous automatic sample loading
Mixer No, but probe mixing samples
Reagent and other consumble Column test quantity 3000T
Reagent pack

600T(Reagent)

3000T(Column)

Eluent 2
Operation and character information Operation screen 10 inch Full color LCD display
Data storage 5000
Built-in Thermal Printer Yes
Performance information CV <2%
Test range 3.0%~18.0%
　
Package Information		 Dimensions 378(L) ×380(W)×510(H)mm
Weight 28kg

Product Composition

Main Parts

The analyzer consists of an auto sample injection module, a liquid chromatography separation module, a colorimetric detection and control module, a barcode scanning module, and a display printing module.

Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic

Reagents and Consumables

The analyzer is recommended to be used in conjunction with the Glycosylated Hemoglobin Test Reagent Kit (high performance liquid chromatography (HPLC method)) produced by our company, which includes the following components:
Specification Function
Eluent A

300T*2 (1000ml*2)

 Adjusts the pH of the solution for the elution of glycosylated hemoglobin and non glycated hemoglobin.
Eluent B 300T*2 (250ml*2)
Eluent C(Variant Mode) 300T*2 (650ml*2)
Hemolysis Reagent

300T*2(2300ml*2)

100ml*1

 Used to dissolve red blood cells and release hemoglobin.
Hemoglobin Filter 2um*1pc Used to initially filter the sample after hemolysis.
Paper Rolls 57*Ф30*12pcs Prints a report of the test results.
Chromatography Column(Optional) 3000T*1pc, 4.6x30mm, 5μm Used for separation and elution of glycosylated hemoglobin and non glycated.

Chromatographic Column HPLC HbA1c Analyzer For HbA1c Test Fully Automatic
