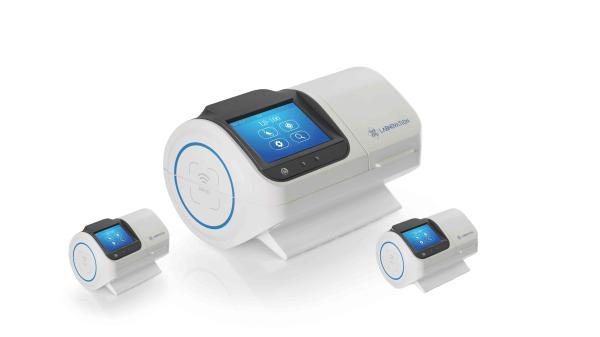

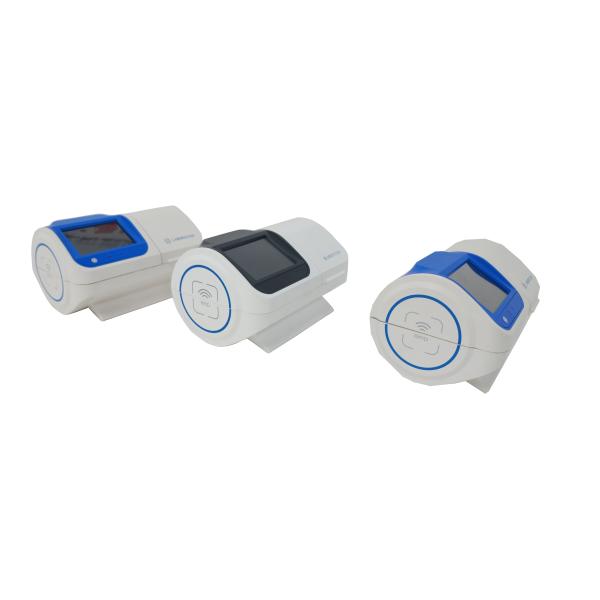

Automatic POCT HbA1c Analyzer Boronate Affinity Principle For Glycosylated Hemoglobin Diaglosis
Automatic POCT HbA1c Analyzer Boronate Affinity Principle For Glycosylated Hemoglobin Diaglosis
Specifications
Brand Name :
LABNOVATION
Model Number :
LD-100
Certification :
IFCC, NGSP
Place of Origin :
Shenzhen, China
MOQ :
1 Unit
Price :
USD7,000.00-12,000.00/Unit
Supply Ability :
100 Units/Day
Delivery Time :
15-20 working days
Packaging Details :
Carton Size: 480mm×480mm×615mm, Gross Weight: 28kgs
Principle :
Boronate Affinity
Test Speed :
Within 3min/test
Sample types :
Whole blood
Test blood volume :
4μL
Analytical wave length :
510nm/580 nm.
Test range :
4.0%~16.0%
CV :
<3%
Data storage :
7000
Printer :
Bluetooth printer (with charging cable)
Dimensions :
192(L)×128(W)×108(H) mm
Gross Weiht :
800g
Description

Automatic POCT HbA1c Analyzer For Glycosylated Hemoglobin Diaglosis


Intended use

This instrument is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood.
Principle
HbA1c Analyzer uses the (borate affinity) fluorescent immunoturbidimetry. Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently.
The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells. The total concentration of hemoglobin depends on the initial reduced fluorescence signal. Fluorescent borate conjugates bind to glycosylated hemoglobin, and glycosylated hemoglobin is determined by detecting the decrease of fluorescent active ingredients.
The percentage of glycosylated hemoglobin in total hemoglobin can be determined.
Performance

• Boronate affinity test principle for HbA1c

• One-step Operation
• 3-minute test time
• Small sample size
• Ideal for measurements of small series
• A compact, lightweight benchtop instrument
• Minimal maintenance required
• Portable — battery operation possible
• Traceable to the IFCC Reference Method for HbA1c

Automatic POCT HbA1c Analyzer Boronate Affinity Principle For Glycosylated Hemoglobin Diaglosis

Specification

Instrument Manufacturer Lanovation
Manufacture location Shenzhen, China
Model LD-100
Dection information Principle method Boronate affinity
Detection method Dual wavelengh colorimetry
Wavelength 420nm
Test Speed 3 Minutes/test
Sample information Sample types Whole blood
Sample volume 4μL
Reagent and other consumble Reagent pack 25T
Reagent kind 1
Operation and character information Operation screen 10 inch Full color LCD display
Data storage 7000
Printer Bluetooth printer (with charging cable)
Performance information CV <3%
Test range 4.0%~16.0%
　
Package Information		 Dimensions 192(L)×128(W)×108(H) mm
Weight 800g

Product Composition

Main Parts

HbA1c Analyzer is composed of the systems of sample cup mixing, colorimetric detection and system control, result display.

Reagents and Consumables

The HbA1c Analyzer should be only used together with the reagents and consumed produced by Labnovation.

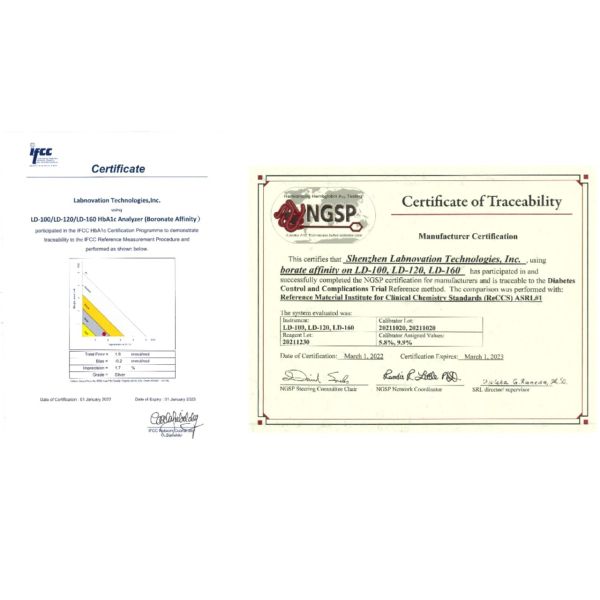

Certificate

Automatic POCT HbA1c Analyzer Boronate Affinity Principle For Glycosylated Hemoglobin Diaglosis
