HPLC HbA1c Glycosylated Hemoglobin Analyzer 378mm×380mm×510mm
HPLC HbA1c Glycosylated Hemoglobin Analyzer 378mm×380mm×510mm
HPLC HbA1c Glycosylated Hemoglobin Analyzer 378mm×380mm×510mm
HPLC HbA1c Glycosylated Hemoglobin Analyzer 378mm×380mm×510mm
Specifications
Brand Name :
LABNOVATION
Model Number :
LD-560
Certification :
IFCC, NGSP, CE
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
US$5000-12000/Piece
Payment Terms :
D/A, D/P, T/T
Supply Ability :
100/Day
Delivery Time :
5-7 work day
Packaging Details :
Carton
Type :
IVD Diagnostic Reagent
Dimensions :
378mm×380mm×510mm
Method :
HPLC
Test Speed :
90 Second Per Test
Sample Type :
Whole Blood, Per-Diluted Blood
Precision :
CV<2%
Description

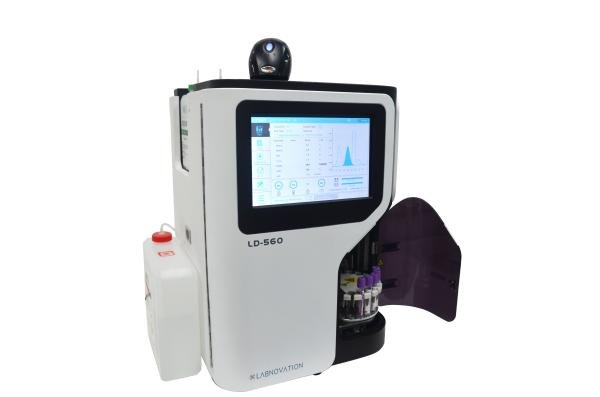

HbA1c Testing Analyzer LD-560 Most Cost-effecive Hematology Detection Analyzer With HPLC Method

Intended Use

This analyzer is a fully automated instrument used to analyze glycosylated hemoglobin. It has the characteristics of small sample amount and simple operation. It is suitable for the detection of glycosylated hemoglobin in medical institutions. And the LD-560 analyzer has fully automatic system which is very easy for use. About the LD-560 it used in conjunction with suitable reagents for the quantitative detection of glycosylated hemoglobin (HbA1c) in human blood.

Specifications

Name

Fully Automated HbA1c Analyzer
Model LD-560
Method HPLC
Parameters HbA1c, HbF, HbA1a, HbA1b, HbA0; HbA2 (optional)
Test Speed 90 seconds per test
Wavelength 420nm
Sample Type Whole Blood, Pre-diluted blood
Autoloader Capacity 20 tubes
Precision CV＜2%
Column Capacity 3000 tests
Working Condition Temperature: 15-30℃
Test specimen volume 5ul (whole blood), 150ul (pre-dilution)
Connection to grid power

Detachable power cord
Operating conditions Continuous

HPLC HbA1c Glycosylated Hemoglobin Analyzer 378mm×380mm×510mm

Feature

  • No Sample Pre-treatment
  • Fully automated operation saves time and labor
  • Automatic Primary tube sampling with cap puncture
  • No special tools required for daily maintenance
  • Reliable Results

Advantage

  • Easy-to-use touch-screen platform,multi-language system
  • Testing time within 90s per test
  • Low cost and large sampling capacity
  • Excellent precision, reliability and repeatability

HPLC HbA1c Glycosylated Hemoglobin Analyzer 378mm×380mm×510mm

Performance Parameters

  • Reporting unit: Glycosylated hemoglobin (HbA1c) is reported in NGSP (%) and IFCC units (mmol/mol).
  • Repeatability: For samples with a test concentration of 4%-6%, the sample coefficient of variation (CV) of the test results is not greater than 2.0%..
  • The temperature accuracy and fluctuation of the chromatography column module: the temperature is within ±1°C of the set value, and the fluctuation is not more than 0.8°C.
  • Accuracy: The accuracy is tested with reference materials as samples, and the relative deviation of the test results should be within ±5%.

Certificated

HPLC HbA1c Glycosylated Hemoglobin Analyzer 378mm×380mm×510mm
