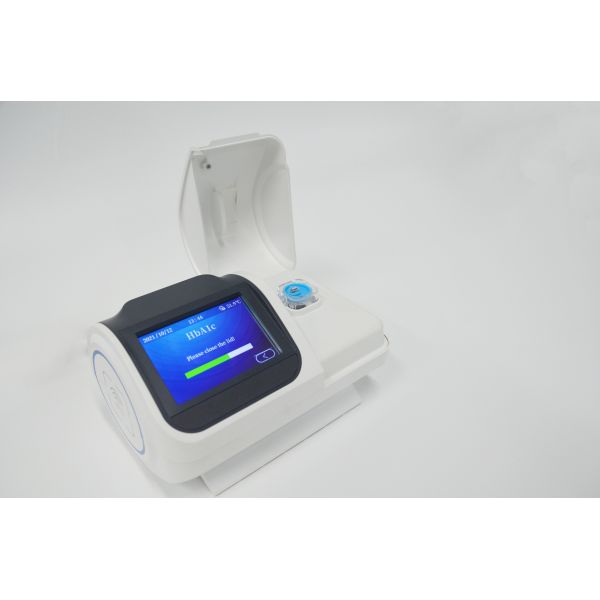

HbA1c Test Analyzer LD-100 Fully Automatic Testing Hematogy Analyzer Medical Use HbA1c Analyzer

Intended Use

This instrument is intended for the percent determination of hemoglobin A1c (HbA1c) in human whole blood. Testing processis very simple, touch screen for start testing by click. The LD-100 HbA1c Analyzer is a semi-automatic instrument used to analyze glycated hemoglobin. It just need small sample the can do the HbA1c tetsing, very esay operation and it is suitable for the detection of HbA1c in medical units at all levels.

Specifications

PRINCIPLE
HbA1c Analyzer uses the (borate affinity) fluorescent immunoturbidimetry. Push a mixture containing a fluorescent borate conjugate into an integrated test cup and mix to dissolve sufficiently. The blood samples in the sample collector are then pushed into the buffer and mixed to release the hemoglobin from the red blood cells.

Performance Parameters

• Accuracy:The relative deviation of the determination results of the analyzer should be within the range of ±8%.
• Precision:Samples with a concentration of 4.0%-6.5% are detected, and the sample coefficient of variation (CV) of the test results is not more than 3%.
• Linearity:In the range of 4%-16% of HbA1c, the linear correlation coefficient r of the test results should be no less than 0.9900.
• Stability:Within 8 hours after the instrument is turned on and stable, the same normal sample is tested, and the relative deviation of the test results is not more than ±3%.

Feature

• Boronate Affinity
• Battery Integrated
• Portable, Compact
• Cv<3%, Excellent Correlation With HPLC
• RFID For Batch Management
• External printer (Blue-tooth)
• USB Port, LIS Support
• Operating mode: Continuous
• Easy for use

Reliable

Use Step

• Place cartridge in analyzer
• Push bead into reagents
• Insert sample into cartridge

Certificated
