80mm Medical Device Testing Equipment For Measuring Head End Swing Forceps
80mm Medical Device Testing Equipment For Measuring Head End Swing Forceps
Specifications
Brand Name :
KERANG
Model Number :
YY8666-BDL
Certification :
Calibration Certificate（Cost Additional）
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
plywood
name :
Instrument for measuring head end swing of medical forceps
standard :
It fully conforms to the regulations of yy0194-1994
Force range :
The error range of 1-10n is ± 1%, and the resolution is 0.01N
Deformation range :
The error range of 0.01-25.0 mm is ± 0.02 mm
Moving distance :
0～80mm
Moving speed :
5mm/min
Net weight :
10.5kg
Dimensions :
400×290×275（mm)
Description

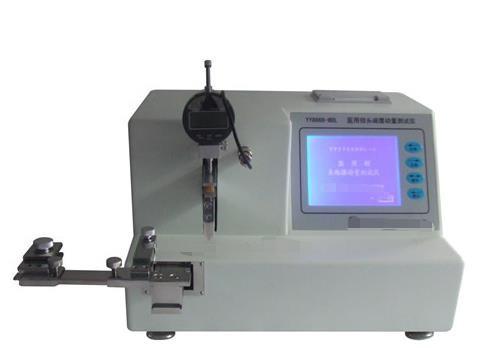

Instrument for measuring head end swing of medical forceps

Product description
Yy8666-bdl instrument is designed and manufactured according to the relevant provisions of yy8666-88. It is specially used to test the end swing of medical forceps. A 6-inch (320 × 240) single color liquid crystal display screen is adopted, including moving distance, swing, printing, testing, uplink, downlink, time and calibration. The menu on the display screen is controlled by the keyboard. The automatic displacement is printed by the airborne test data, and the test is completed automatically.

Product introduction:
A 5.7 inch (320 × 240) single color liquid crystal display is adopted, and the Chinese menu is displayed. Nominal specification, test load, print, test, uplink, downlink, time, calibration. The menu on the LCD screen is controlled by the keyboard to automatically record the deformation data, such as average value, maximum value, minimum value, etc.; the data report is automatically output, and the test data is printed on board, which fully conforms to the regulations of yy0194-1994.
Force range: 1-10n, error range ± 1%, resolution 0.01N
The range of deformation is 0.01 ~ 25.0 mm, and the error range is ± 0.02 mm
Moving distance: 0 ~ 80mm, moving speed: 5mm / min
Test types: dental forceps, oviduct external fixation forceps, vas deferens separation forceps.
Net weight: 10.5kg
Overall dimension: 400 × 290 × 275 (mm)
