Stainless Steel Cable Testing Machine , Electric Cable Cold Bending Test Machine
Stainless Steel Cable Testing Machine , Electric Cable Cold Bending Test Machine
Stainless Steel Cable Testing Machine , Electric Cable Cold Bending Test Machine
Stainless Steel Cable Testing Machine , Electric Cable Cold Bending Test Machine
Specifications
Place of Origin :
China
Brand Name :
KeRang
Certification :
Calibration Certificate (Cost Additional)
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
30 days
Payment Terms :
L/C,L/T
Supply Ability :
10 set /month
Standard :
IEC60811-1-4
Application :
intended in general for cables
name :
Cold Bending Test Machine HDX1307
product :
Cable Testing Machine
Feature :
Made of stainless steel
Test sample :
Cables with an overall diameter up to and including 12.5 mm
Description

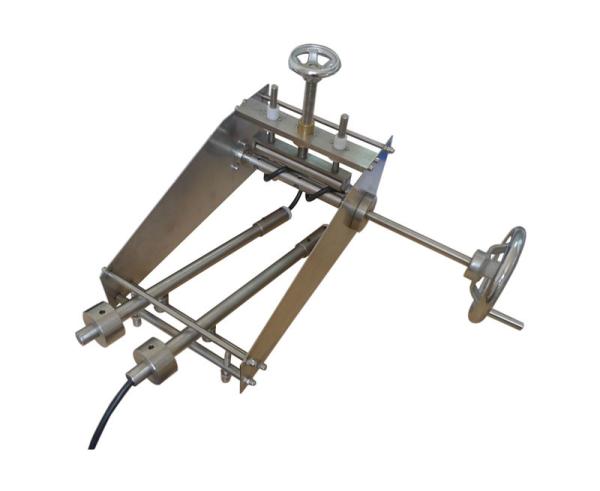

Cold Bending Test Machine HDX1307

Standard:IEC60811-1-4 clause 8.1 and 8.2, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature.

Application:This test is intended in general for cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.

Test sample:Cables with an overall diameter up to and including 12.5 mm, or for flat cables, a major axis dimension up to and including 20 mm.

Feature:Made of stainless steel, 2 stations,equip with the extended handle which can be connected to the outside of the low temperature chamber.

Parameters:

Station:2

Diameter of samples:Φ2.5mm ～12.5mm

The number of turns:2 to 10 turns, and the number of turns shall be as specified in the following table:

Overall diameter (d) of the test piece (mm) Number of turns
D≤2.5 10
2.5﹤d≤4.5 6
4.5﹤d≤6.5 4
6.5﹤d≤8.5 3
8.5﹤d 2

Test condition: The diameter of the mandrel shall be between 4 and 5 times the diameter of the test piece. Standard equip with the mandrel :Ф4,Ф5,Ф6,Ф7,Ф8,Ф10,Ф12,Ф14,Ф16,Ф18,Ф20,Ф24,Ф37.5mm

Rotation speed: 5S/ turn, manual control

Diameter of pipe: Ф3.5,Ф6,Ф10,Ф12,Ф16mm, each of two pieces

Advantage:


1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.

Primary products:

Laboratory Test Equipment

Appliance Test Equipment

Medical Device Testing Equipment

Waterproof Test Equipment

Dust Testing Equipment

Flammability Testing Equipment

Electric Testing Equipment

Impact Testing Machine

Cable Testing Machine

Vibration Test Equipment

Light Testing Equipment

Communication Test Equipment

Plug Socket Tester

Leak Test System
