Specifications
Name :
Vessel For Hotplates Test HJ0630
Test sample :
Hotplates.
Parameters :
Aluminum vessel
Standard :
IEC60335-2-9
The maximum concavity of the vessel :
not more than 0.05 mm
Type :
made of low carbon steel
Place of Origin :
China
Brand Name :
KeRang
Certification :
Calibration Certificate (Cost Additional)
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
30 days
Payment Terms :
L/C,L/T
Supply Ability :
10 set /month
Description

Vessel For Hotplates Test HJ0630

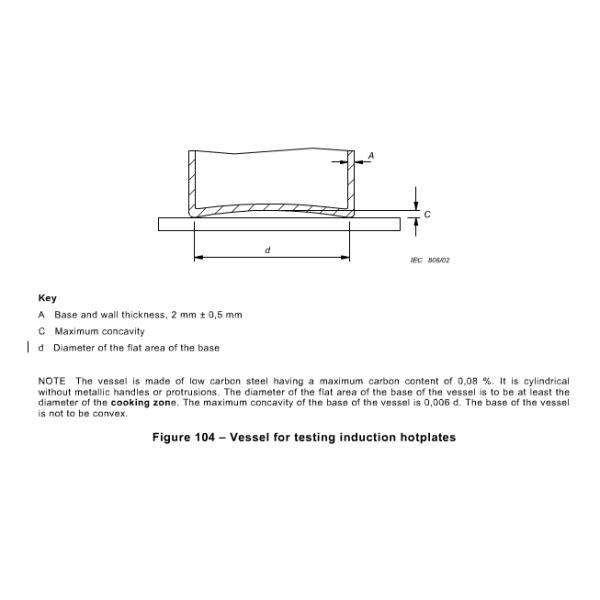

Standard: This device meets the standard of IEC60335-2-9 clause 3.1.9.108 figure 103 and figure 104,Household and similar electrical appliances-Safety-Part 2-9:Particular requirements for grills, toasters and similar portable cooking appliances.

Application: It is used to simulate the vessel is placed on the hotplates in normal operation.

Test sample:Hotplates.

Parameters:

Aluminum vessel:Made of aluminum,flat base with cover, meet the requirements of table 101 quantity of liquid in the vessel, mainly used for water boiling test.

Table 101-Quantity of liquid in the vessel

Diameter of cooking zone

mm

Quantity of water or oil

l
≤110 0.6
＞110 and ≤145 1.0
＞145 and ≤180 1.5
＞180 and ≤220 2.0
＞220 and ≤300 3.0

Diameter of cooking zone mm Approximate dimension
a mm b mm c mm
≤110 110 140 8
＞110≤145 145 140 8
＞145≤180 180 140 9
＞180≤220 220 120 10
＞220≤300 300 100 10

NOTE: The maximum concavity of the vessel is to be not more than 0.05 mm. The base of the vessel is not to be convex.

Steel vessels: The vessel is made of low carbon steel having a maximum carbon content of 0.08%. It is cylindrical without metallic handles or protrusions. The diameter of the flat area of the base of the vessel is to be at least the diameter of the cooking zone. The maximum concavity of the base of the vessel is 0.006d. The base of the vessel is not to be convex. A3 low carbon steel, surface: black oxidating. meet the requirements of table 101 quantity of liquid in the vessel and figure 104 parameters requirement (Φ110mm, Φ145mm, Φ180mm, Φ220mm, Φ300mm,1 set with 5 pcs), mainly used in cooking oil heating test.
