38kg Net Weight Medical Device Testing Equipment For Medical Suture Diameter
38kg Net Weight Medical Device Testing Equipment For Medical Suture Diameter
Specifications
Brand Name :
KeRang
Model Number :
KR-FH-005
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C,L/T
Supply Ability :
10 set /month
Delivery Time :
30 days
Packaging Details :
plywood
Loading weight :
0 ～ 2kg
accuracy :
± 0.1g
Presser foot load :
210g ± 3G.
Printing mode :
it can print 3-point (line 1 / 4, 1 / 2, 3 / 4 position) measurement test data
Net weight :
38kg
dimension :
320 × 1200 × 280 (mm)
Description

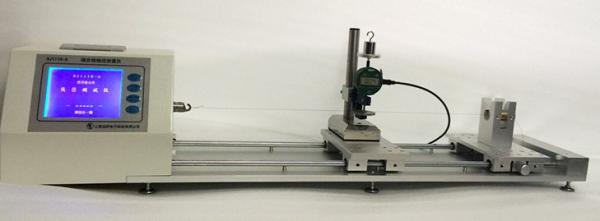

Medical suture diameter tester

The medical suture diameter tester is designed and manufactured according to the provisions of absorbable surgical suture (yy1116-2010) and non absorbable surgical suture (yy0167-2005) on the measurement of suture diameter, which is a special equipment for testing the suture diameter.

Nominal specification: 12-0 5 all medical sutures.

Graduation of wire diameter measurement: 0.001mm. Presser foot diameter: 12.7 ± 0.02 mm; reference plane diameter: 50 mm.

Flatness of presser foot and reference plane: no more than ± 0.005mm.

Parallelism between presser foot and datum plane: no more than one thousandth.

Loading weight: 0 ～ 2kg, accuracy: ± 0.1g

Presser foot load: 210g ± 3G.

Printing mode: it can print 3-point (line 1 / 4, 1 / 2, 3 / 4 position) measurement test data

and average value, and can print 10 times test average value and its total average value and deviation value.

Net weight: 38kg overall dimension: 320 × 1200 × 280 (mm)
