Specifications
Name :
Sand and Dust Test Chamber DC-1
Metal mesh diameter :
Ф50µm
Input voltage :
AC 220V±10 % 50Hz&120V 60HZ
screen stencil diameter :
75µm
Testing time :
0.01s~99 hours 99mins,preset arbitrarily
Power :
≤1500W
Place of Origin :
China
Brand Name :
KeRang
Certification :
Calibration Certificate (Cost Additional)
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
30 days
Payment Terms :
L/C,L/T
Supply Ability :
10 set /month
Description

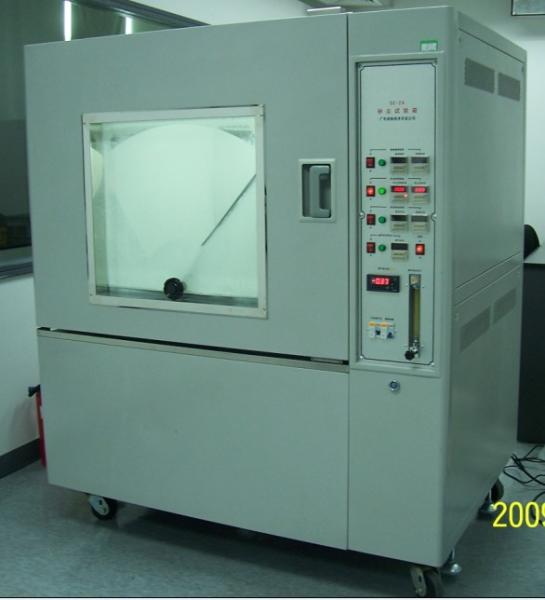

Sand and Dust Test Chamber DC-1

Our company has a core team with years of technology development, technology transfer, technical consulting, technical services experience, providing Appliance Test Equipment, Medical Device Testing Equipment, Waterproof Test Equipment, Dust Testing Equipment, Flammability Testing Equipment, Electric Testing Equipment, Impact Testing Machine and so on.
Over the years, we focus on Laboratory Test Equipment, With enthusiastic, professional and efficient production design and sales service team. The quality of our products is checked by the inspection of the exported products and 100% of the total inspections are conducted. Choosing us means choosing high quality products and excellent services.

Product information:

Sand and dust test chamber is designed and manufactured in accordance with the standard requirement of IEC60529. It is applicable to do the dust proof test of all kinds of electric and electronic products used on the environmental condition of sand dust.

Technical parameters:

Item parameter
Input voltage AC 220V±10 % 50Hz&120V 60HZ
Metal mesh diameter Ф50µm
screen stencil diameter 75µm
Dust used in the test Dry talcum powder which can go through olfactory foramina
Dust concentration Dust capacity of the chamber is 2Kg /m³
Airflow velocity The maximum is no more than 2m / S
Testing time 0.01s~99 hours 99mins,preset arbitrarily
Speed of evacuation of vacuum pump ≤1litre/1s Adjustable arbitrarily.
Power ≤1500W
Environmental condition

Temperature:0~40℃

Relative humidity:≤85%RH

No fierce shaking, impacting, vibrating. No dust and corrosive air

Outer box size L*W*H=1000mm×1100mm×1650mm
Internal box size L*W*H=800mm×800mm×800mm

AC 220V Dust Testing Equipment Sand And Dust Test Chamber Long Life Span

Production Line

With years of development, we have established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 30 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry.

Our Team

Responsibility is the assurance of quality, and quality is the life of corporation. We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
