Electric Wire Abrasion Test Apparatus HDX1304 Single Strokes 0.1mm Test Stroke
Electric Wire Abrasion Test Apparatus HDX1304 Single Strokes 0.1mm Test Stroke
Electric Wire Abrasion Test Apparatus HDX1304 Single Strokes 0.1mm Test Stroke
Electric Wire Abrasion Test Apparatus HDX1304 Single Strokes 0.1mm Test Stroke
Electric Wire Abrasion Test Apparatus HDX1304 Single Strokes 0.1mm Test Stroke
Electric Wire Abrasion Test Apparatus HDX1304 Single Strokes 0.1mm Test Stroke
Specifications
Place of Origin :
China
Brand Name :
KeRang
Certification :
Calibration Certificate (Cost Additional)
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
30 days
Payment Terms :
L/C,L/T
Supply Ability :
10 set /month
Power supply :
AC220V 50Hz
Fixed shaft diameter :
Φ40±0.3mm
Test rate :
Single strokes 40±1 times/minute
Test stroke :
0.1mm up-and-down movement
Working station :
3
Weight :
500±5g*3
Description

Electric Wire Abrasion Test Apparatus HDX1304

Standard:IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements,IEC60245-2 clause 3.3 and Figure 3 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Application:It is used for checking the wear resistance test of the completed flexible cables.

Test sample:Completed flexible cables.

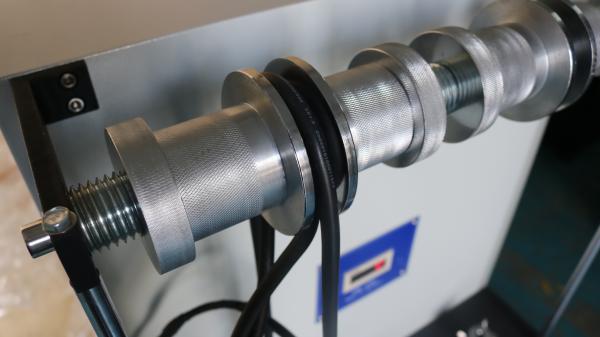

Feature:This test shall be made on three pairs of samples of flexible cable, each sample having a length of about 1 m. In each pair one sample shall be wound so as to give nearly two turns on a fixed reel having a diameter of 40 mm at the bottom of the groove as shown in figure 3, the distance between the flanges of the reel being such that the turns are in close contact with each other. The sample shall then be fixed to prevent any movement relative to the reel. The other sample shall be placed in the groove formed by the turns and a weight having a mass of 500 g shall be attached to one end. The other end shall be moved up and down over a distance of 0.10 m, at a rate of about 40 single strokes per minute.

Parameters:

Power supply AC220V 50Hz
Fixed shaft diameter Φ40±0.3mm
Test rate Single strokes 40±1 times/minute
Test stroke 0.1mm up-and-down movement
Working station 3
Weight 500±5g*3
Counter 0~999999 (can be preset)
Dimension 1200×400×1400 (mm)
