Electric Wire Burning Cable Test Equipment ASTM D 5025 Wireless Sensor
Electric Wire Burning Cable Test Equipment ASTM D 5025 Wireless Sensor
Electric Wire Burning Cable Test Equipment ASTM D 5025 Wireless Sensor
Electric Wire Burning Cable Test Equipment ASTM D 5025 Wireless Sensor
Electric Wire Burning Cable Test Equipment ASTM D 5025 Wireless Sensor
Electric Wire Burning Cable Test Equipment ASTM D 5025 Wireless Sensor
Specifications
Place of Origin :
China
Brand Name :
KeRang
Certification :
Calibration Certificate (Cost Additional)
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
30 days
Payment Terms :
L/C,L/T
Control operation mode :
PLC control
Working voltage :
220V/50Hz
Blast burner standard :
ANSI/ASTM D 5025
Vertical test :
965±30ml/min or 117±3 mm
Standard :
UL1581 Reference standard for electrical wires,cables, and flexible cords.
Gas category :
Purity>98% methane
Supply Ability :
10 set /month
Description

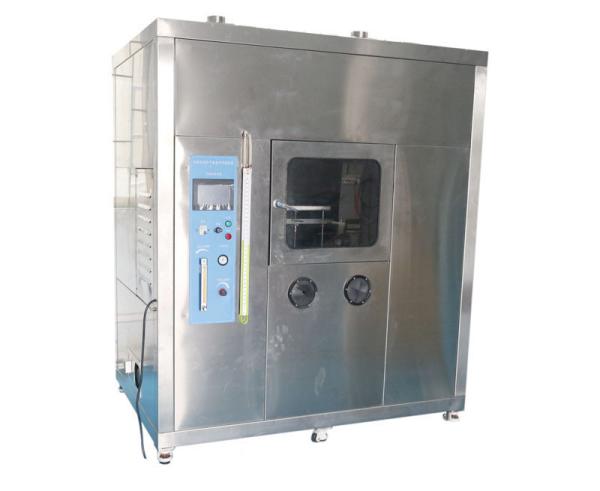

Electric Wire And Cable Burning Test Chamber



Feature:

  • Using integral intake automatic ignition system, combustion time delay only 0.1s to ensure that the full combustion of the gas.
  • Using PLC intelligent control system, touch screen operation interface, and with remote control wireless sensor remote operation, so that to make the record is more accurate.
  • The blast burner is in accordance with ANSI/ASTM D 5025 standard manufacturing Bunsen, precise and durable
  • The imported Omega armoured K type thermocouple and U type differential pressure gauge
  • Black background, multifunctional flame gauges, so that to make the flame adjustment work becomes simple, stainless steel box, large observation window easy operation.


Parameters:

Working voltage 220V/50Hz
Control operation mode PLC control, 7 inch color touch screen operation, with infrared remote control
Blast burner standard ANSI/ASTM D 5025,diameter:9.5mm ± 0.5mm,length:100mm,made of brass
Gas flow

Vertical test:965±30ml/min or 117±3 mm；horizontal test:440±10mL/min or 58±1mm,
Flow meter adjustment
Gas pressure 0.1MPa
U type pressure gauge back pressure water column height Vertical test:125±10 mm；horizontal test:45±5mm
Combustion time / residual glow time 9999X0.1S
Combustion angle 0°,20°,45°,Adjustable
Test flame calibration Temperature measuring copper head:Ф9mm±0.01mm,weight before drilling:10 ± 0 .05g
Thermocouple::The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple,temperature resistance 1100°
Distance between the bunsen burner port to temperature measuring copper block:Vertical test:55±1 mm；horizontal test:25mm

Flame height:
Vertical test:Inner flame:40±2mm,Outer flame:125mm；horizontal test: Inner flame:16.5±1.5mm,Outer flame:50±4mm
Temperature rise time from 100±5°C to 700°±3°C:Vertical test:54±2S; horizontal test:84±2s
Gas category Purity>98% methane
Dimension and weight WDH=1850×1300×22500㎜,about:400kg

Standard: UL1581 Reference standard for electrical wires,cables, and flexible cords.
Application:It is applicable for the finished wire and cable, or soft-line to do 1060 vertical combustion and FT1 test, 1061 cable combustion test, 1080VW-1(vertical specimen) combustion test, 1090 electric wire horizontal specimen combustion test and 1100 horizontal specimen/ FT2 combustion specimen. The testing purpose is to evaluate the spreading flame capacity of electric wire or soft-line when they are on fire.
Test sample:Rubber insulated cables, thermoplastic insulating material for wires and cables, cords and service cable.
