Burn Resistance Flammability Testing Equipment For Car Interior Material
Burn Resistance Flammability Testing Equipment For Car Interior Material
Specifications
Place of Origin :
China
Brand Name :
KeRang
Certification :
Calibration Certificate (Cost Additional)
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
30 days
Payment Terms :
L/C,L/T
Working voltage :
220V/50Hz
Control operation mode :
Electrical control, button operation
Flame height :
38mm ,Solenoid valve adjustment
Distance between top of the blast burner to the test sample :
19±1mm
name :
Burn Resistance Tester for the Interior Decoration Material of Car
type :
Flammability Testing Equipment
Supply Ability :
10 set /month
Description

Burn Resistance Tester for the Interior Decoration Material of Car

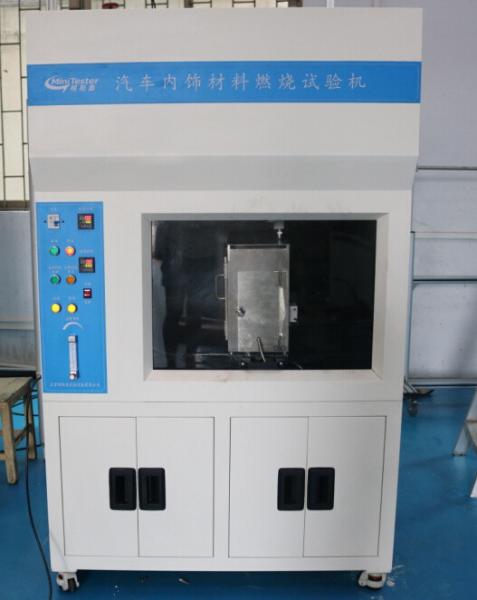

Feature:This tester is composed of control box, combustion box body, combustion lamp, solenoid valve, high pressure igniter, thermometer, signal control line and upper and lower bracket of test specimen. The control box and combustion box are made of stainless steel. It has nice exterior with resistance to corrosion of smoke and gas. What’s more, the control system of this device is with high degree of automation. For example, autoignition, automatic air supply, self-clocking and automatically end test. It is easy observe and record and it is stable and reliable to use.


Parameters:

ParametersModelHVF-6HVF-6A
Working voltage220V/50Hz
Control operation modeElectrical control, button operation
Blast burnerNozzle jet inner diameter Ø9.5±0.3mm effective length 100mm±10mm
Gas flow and gas categoryLiquefied gas, natural gas and gas can also be used
Combustion chamberMade of stainless steel, with heat resistant glass observation window, around and at the bottom with the ventilation hole , L×W×H=385mm×204mm×360mm
Combustion / self extinguishing time0-9999X0.1S
Distance between top of the blast burner to the test sample19±1mm
Flame height38mm ,Solenoid valve adjustment38mm ,Flow meter adjustment
Metal combThe length is at least 110mm, have 7～8 smooth crenations of every 25mm
Test chamber temperature0-150°C,Thermometer display
Equipment structure and dimensionsControl cabinet and combustion chamberWith ventilation cabinet by electric control and the combustion chamber, black matt background, built-in lighting, with the exhaust fan, dimension:1150*600*1200mm,180kg

Standard:ISO3795,ASTM D5132.
Application:It is suitable for evaluating the horizontal firing characteristic of the interior decoration material of car (including limousine, multi-purpose passenger car, truck and coach).
Test sample:The interior decoration material of car (including limousine, multi-purpose passenger car, truck and coach).
