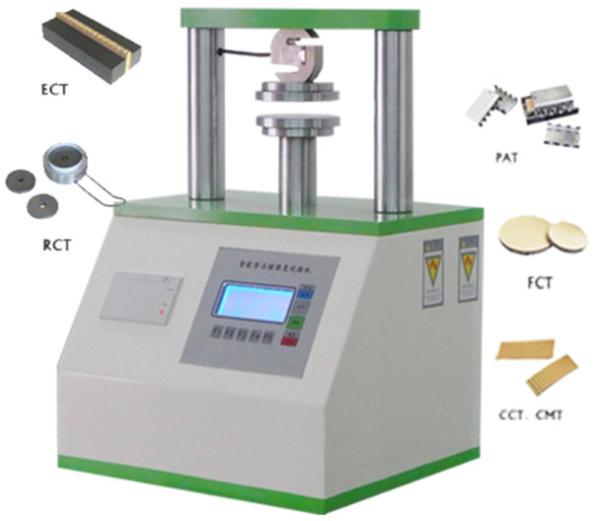

Paper and Board Crush Test Machine SH-19

Standard: TAPPI-T472, T808, T810, T811, T818, JIS-P8126, ISO 7263, ISO/DIS 12192, ISO/CD 13821

Application: This device can use for conduct 5 kinds of paper strength tests, that is, the ring crush test(RCT), flat crush test(FCT), edge crush test(ECT), paste test(PAT), general compression test(CMT)

Test sample: Paper packaging materials

Feature: The testing machine can be used to do full range crush testing to variety of materials

Parameters:

• Capacity: 10,20,50,100,200kg (for option)
• Crush plate: diameter 110mm
• Crush base: diameter 120mm
• Crush spacing: 80mm
• Test speed: 12.7mm/min
• Weight: 48kg
• Power supply: AC220V 50Hz
• Equipped with edge crush clamp, ring crush clamp and paste test clamp for option
