200va Medical Indwelling Needle Blood Returning Tester
200va Medical Indwelling Needle Blood Returning Tester
Specifications
Brand Name :
KERANG
Model Number :
HXY2011-A
Certification :
Calibration Certificate（Cost Additional）
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
plywood
name :
Medical indwelling needle blood returning instrument tester
standard :
Meet the relevant standards of yy0285
working temperature :
5～40℃
relative humidity :
45～80％
supply voltage :
220V±22V
Grid frequency :
50HZ±1HZ
Description

Medical Indwelling Needle Blood Returning Instrument Tester

Product introduction:


The instrument is designed and manufactured according to yy0285 standard. Its technical performance and index fully conform to the relevant standards of national pharmaceutical industry. It is specially used for the measurement of catheter flow.

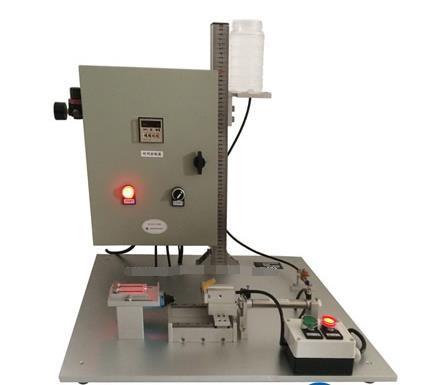

Hxy2011-a medical indwelling needle blood returning instrument is composed of intelligent controller, force measuring mechanism, ranging mechanism, printer and so on. The intelligent controller is composed of CPU, motherboard, keyboard and power supply. With the keyboard to control the cursor for options, operations, settings, no training can follow the prompts to operate.

① Cylinder requirements: round, stroke 6cm, pressure of 0.3 ~ 0.7MPa, speed of 10mm / s,
The length of the pipe is 105mm (the current cylinder is 105mm in shape and 60mm in stroke);
Brand: Yadeke, J / no PC 0214, max. press. 9.9 kgf / cm2 psi)
External diameter: 15mm, disposable venous indwelling needle (Draft for comments).
② Timing resolution: 0.01s, 0 ~ 60min adjustable
Size: 400 × 290 × 240 (mm)

Technical parameters:
Environment:

Working temperature: 5 ~ 40 ℃

Relative humidity: 45 ~ 80%

Power supply voltage: 220 V ± 22 V

Power grid frequency: 50 Hz ± 1 Hz
Power consumption: 200va
Loading range: 0 ~ 12n, accuracy: ± 1%
