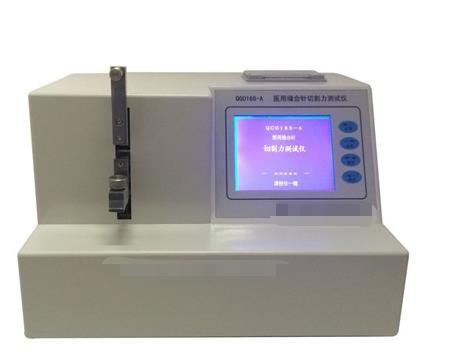

100mm/min Cutting Force Tester For Medical Suture Needle
100mm/min Cutting Force Tester For Medical Suture Needle
Specifications
Brand Name :
KERANG
Model Number :
QG0166-A
Certification :
Calibration Certificate（Cost Additional）
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10set/month
Delivery Time :
30days
Packaging Details :
plywood
Name :
Cutting force tester for medical suture needle
standard :
It fully conforms to the regulations of "yy0043-2005"
Test scope :
1 ~ 20n, the error is not more than ± 1%, and the resolution is 0.01N
loading rate :
100 mm/min
Net weight :
8kg
Dimensions :
260×400×290（mm）
Description

Cutting force tester for medical suture needle

Product Description:


Executive standard: designed and manufactured according to relevant provisions in yy0043-2005. It is specially used to test the cutting force of medical suture needle.
Qg0166-a medical suture needle cutting force tester is composed of intelligent controller, force measuring mechanism, ranging mechanism, printer and so on. The intelligent controller is composed of CPU, motherboard, LCD, keyboard, power supply and so on. The screen is displayed in all Chinese windows, and the keyboard controls the cursor for options, operation and setting. It can be operated according to the prompts without training.

Product introduction:


It adopts 5.7 inch (120 × 90) single color LCD touch screen and Chinese menu display. Nominal specification, test load, print, test, uplink, downlink, time, calibration. The menu on LCD is controlled by keyboard, cutting force is loaded automatically, wire diameter data is recorded automatically, data report is output automatically, and test data is printed on board, which fully conforms to the regulations of "yy0043-2005".

The test range is 0.1 ~ 20n, the error is not more than ± 1%, and the resolution is 0.01N;

Loading rate: 100 mm / min;

Nominal specification: 0.2-1.3mm;

The angle of fixture is 180 degrees;

Printing mode: it can print 10 times of test average data and its total average value and deviation value;

Net weight: 8kg,


Overall dimension: 260 × 400 × 290 (mm)
