ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
Specifications
Brand Name :
kerang
Model Number :
SH-16
Certification :
Third party calibration certificate(cost additional)
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets/month
Delivery Time :
5-7 days
Description

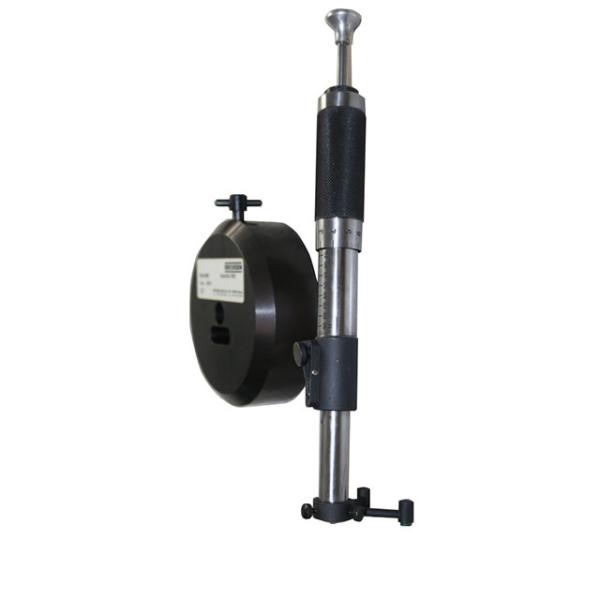

Tester For Resistance To Impact By Small-Diameter Ball

SH-16

Standard:

ISO4532 Vitreous and porcelain enamels-Determination of the resistance of enameled articled to impact-Pistol test, DIN ISO4532 (DIN51 155), ISO4586-2 High-pressure decorative laminates (HPL, HPDL)-Sheets based on thermosetting resins (usually called laminates)—Part 2: Determination of properties clause 24.3 Figure 10, Figure 11, ISO438-2.

Test Scope:

Impact testing for High-pressure decorative laminates-Sheets made from thermosetting resins (HPL), Vitreous and porcelain enamels,

Parameters:

1. Impact energy: 0~90N/cm adjustable

2. Scale: 2N/cm

3. The diameter of impact steel ball Φ5mm

4. With round support fixture, used to fix the impact test

5. The rating after 5 shocks shown below:

Class Spring Force N
1 ≥12
2 ≥15
3 ≥20
4 ≥25
Only applicable for thin laminates ≤ 2mm

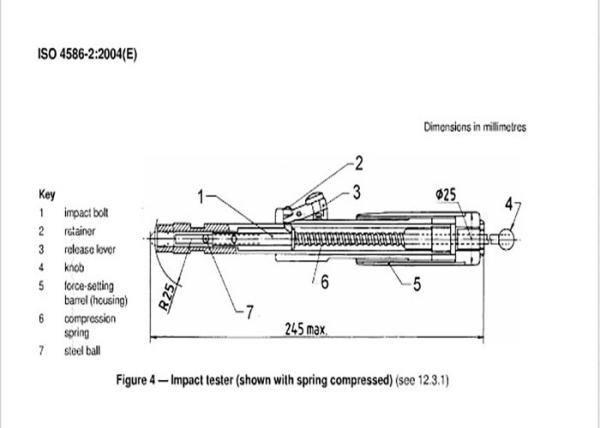

Figures For Reference:

ISO4532 Tester For Resistance To Impact By Small-Diameter Ball

ISO4532 Tester For Resistance To Impact By Small-Diameter Ball
