Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature
Specifications
Brand Name :
HENGNUO
Model Number :
4-20N (Normal Temperature)
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
USD
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
300 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Maximum Rotation Speed :
21000rpm
Time Setting Range :
1min～99min59s
Max Capacity :
4×750ml
Dimensions :
545×468×350(mm)
Net Weight :
50kg
Condition :
New
Warranty :
One year
After-sales service provided :
Online support
Total Noise :
< 65dB（A）
Diameter of Centrifugal Cavity :
4200mm
Total Power :
800W
Description


Medical Equipment High And Low Speed Universal Centrifuge 4-20N Normal Temperature

High and Low Speed Universal Centrifuge

4-20N (Normal Temperature)/4-20R (Refrigerated)

Product Introduction

1. High and low speed universal centrifuge is equipped with a variety of rotors and tube racks, which has centrifugation with large capacity and high speed in multiple utilization.

2. Using New type composite material for angle rotor, the instrument has advantages of super light, high strength, slow heat conduction, strong corrosion resistance, fast speed up and down.
3. Microcomputer control, AC variable frequency motor drive, stable and quiet operation.
4. Large LCD displays parameters such as speed, centrifugal force, temperature and time in real time, and you can change parameters at any time during operation without shutdown.
5. 10 gears for speed acceleration and deceleration control, free stop time of 9 gears can be up to more than 540s, which meets requirements of special separated articles
6. It is displayed in second when the countdown time is less than one minute.
7. Electronic door lock, all-steel inner cavity protection cover, protection set for over speed and over temperature, ensure safety of people and instrument.
8. Suitable for separating and purifying of radioimmunity, biochemistry, bio-pharmaceuticals, and blood products.

Technical Parameters

Model No.4-20N(Normal Temperature)4-20R(Refrigerated)
Max Rotation Speed21000rpm
Max Relative Centrifugal Force29200×g
Max Capacity4×750ml
Timing Range1min～99min59s
Total Noise< 65dB(A)
Total Power800W1500W
Diameter of Centrifugal Cavity4200mm420mm
Compressor Unit/进口压缩机组无氟制冷
Temperature Setting Range/-20℃～40℃
Temperature Accuracy/±1.0℃
Power SupplyAC 220±22V 50Hz 10AAC 220±22V 50Hz 16A

Outline Dimensions
(L*W*H)

545×468×350(mm)640×730×430(mm)
Net Weight50kg95kg





























Rotor Parameters

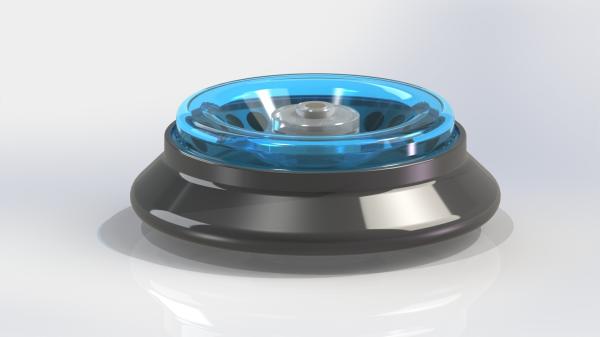

#1 Angle Rotor

Single tube capacity: 1.5ml

Total capacity: 12*1.5ml

Max speed: 21000rpm

Max relative centrifugal force:29200*g

#2 Angle Rotor

Single tube capacity:5ml

Total capacity: 10*5ml

Max capacity:16500rpm

Max relative centrifugal force:18365*g

#3 Angle Rotor

Single tube capacity: 1.5ml

Total capacity: 24*1.5ml

Max speed: 16500rpm

Max. RCF: 24890*g

#4 Angle Rotor

Single tube capacity: 10ml

Total capacity: 12*10ml

Max speed: 15000rpm

Max. RCF: 23120*g

#5 Angle Rotor

Single tube capacity: 15ml

Total capacity: 12*15ml

Max speed: 12000rpm

Max. RCF: 15455*g

#6 Angle Rotor

Single tube capacity: 1.5ml

Total capacity: 36*1.5ml

Max speed: 15000rpm

Max. RCF: 20753*g

#7 Angle Rotor

Single tube capacity: 50ml

Total capacity: 6*50ml

Max speed: 12000rpm

Max. RCF: 15805*g

#8 Angle Rotor

Single tube capacity: 50ml cone

Total capacity: 6*50ml cone

Max speed: 11000rpm

Max. RCF: 13274*g

#9 Angle Rotor

Single tube capacity: 100ml

Total capacity: 4*100ml

Max speed: 11000rpm

Max. RCF: 13000*g

#10 PCR Rotor

Single tube capacity: 0.2ml PCR tube

Total capacity: 4*8*0.2ml PCR tube

Max speed: 15000rpm

Max. RCF: 17357*g
